Removal [11/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE RAIN SENSOR COVER
    1. Disengage the 2 claws and slide the rain sensor cover as shown in the illustration.
      GTY568841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

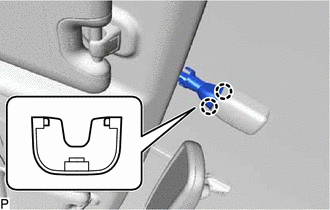

    2. Disengage the 2 claws to remove the rain sensor cover.
      GTY586739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RAIN SENSOR
    1. Disconnect the connector.
      GTY586738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the stopper by pulling it out and remove the rain sensor as indicated by the arrows, in the order shown in the illustration.
      GTY539619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
