Installation [11/2015 - ]: Procedure

HINT:

The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter.

1. Clean the rain sensor sensing portion with a piece of cloth.

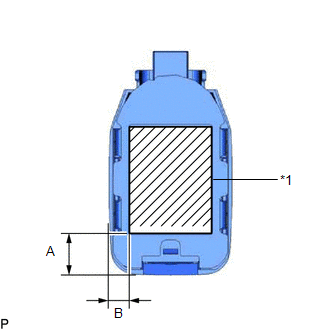

2. Peel off the smaller release sheet, and then attach the rain sensor tape to the rain sensor sensing portion as shown in the illustration.

   HINT:

   Use your fingers to push out any air bubbles from under the tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rain Sensor Tape

   STANDARD CLEARANCE



   Area	Measurement
   A	13.5 mm (0.531 in.)
   B	7.25 mm (0.285 in.)

1. Clean the windshield glass with a piece of cloth.
   NOTE:

   • Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.
   • If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.
2. When installing a new rain sensor or when the rain sensor tape has been replaced:
   1. Peel off the release sheet.

      HINT:

      Do not touch the silicone surface.

3. Gradually attach the rain sensor to the windshield glass surface in the direction indicated by the arrow (1) shown in the illustration to prevent air bubbles from forming between them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   HINT:

   Do not touch the silicone surface of the rain sensor tape or glass surface.

4. Push in the stopper to install the rain sensor in the direction indicated by the arrow (2) shown in the illustration.
5. Connect the connector.

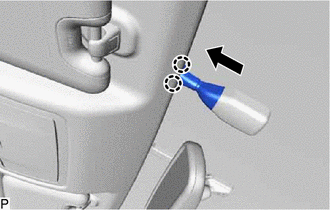

1. Engage the 2 claws.
2. Slide the rain sensor cover and engage the 2 claws to install the rain sensor cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
