Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TELEVISION DISPLAY ASSEMBLY

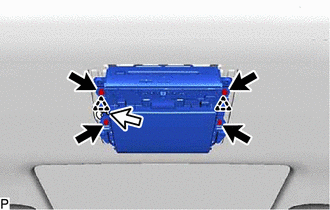

    1. Engage the 2 clips to temporarily install the television display assembly.
      GTY431976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the television display assembly with the 4 bolts.
    3. Connect the connector.
  2. INSTALL TELEVISION BASE
    1. Engage the 4 clips to install the television base.
