Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  3. REMOVE REAR DOOR REAR GUIDE SEAL

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  5. REMOVE REAR SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

    1. Disconnect the connector.

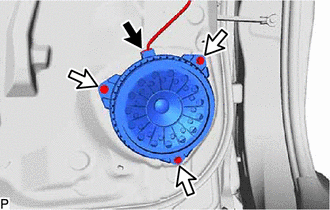

      GTY431951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and rear speaker assembly.
