Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL REAR SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

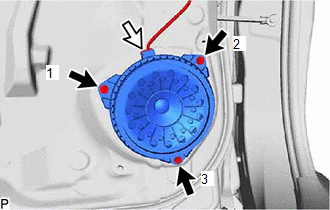

Install the rear speaker assembly with the 3 screws.

HINT:

Install the screws in the order shown in the illustration.

INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 45 , or refer to PROCEDURE - Step 46
INSTALL REAR DOOR REAR GUIDE SEAL
Refer to PROCEDURE - Step 46 , or refer to PROCEDURE - Step 47
INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Refer to PROCEDURE - Step 47 , or refer to PROCEDURE - Step 48
INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 48 , or refer to PROCEDURE - Step 49
