Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

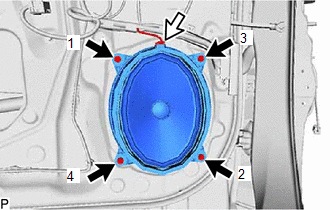

Install the front No. 1 speaker assembly with the 4 screws.

HINT:

Install the screws in the order shown in the illustration.

INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 42 , or refer to PROCEDURE - Step 42 , or refer to PROCEDURE - Step 42
INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 44
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 45 , or refer to PROCEDURE - Step 45 , or refer to PROCEDURE - Step 45
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 46 , or refer to PROCEDURE - Step 46 , or refer to PROCEDURE - Step 46
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 47 , or refer to PROCEDURE - Step 47 , or refer to PROCEDURE - Step 47
