Removal [02/2014 - ]: Procedure

See step  1

HINT:

When removing the front fender wheel opening moulding sub-assembly, heat the vehicle body and front fender wheel opening moulding sub-assembly using a heat light.

1. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pin Hold Clip
   *a	90°

2. Remove the 2 screws.
3. Remove the clip.

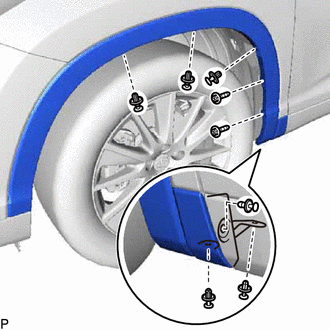

4. w/o Mudguard:
   1. Remove the 2 screws.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Remove the 6 clips.

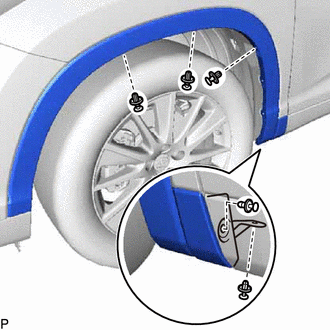

5. w/ Mudguard:
   1. Remove the 5 clips.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

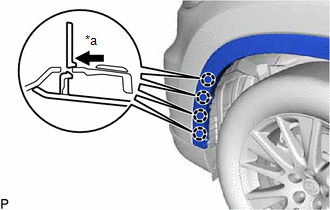

6. Pull back the edge of the front fender liner and disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

   NOTE:

   • Do not apply excessive force when pulling back the front fender liner.
   • To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly.

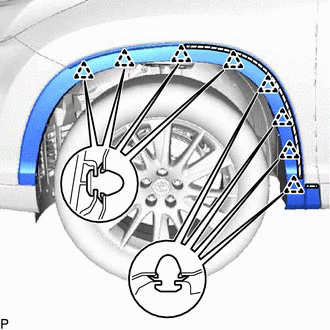

7. Disengage the 8 clips and separate the double-sided tape to remove the front fender wheel opening moulding sub-assembly with front fender moulding sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

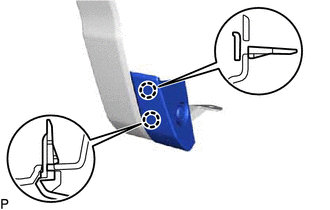

8. Disengage the 2 claws and remove the front fender moulding sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front door upper outside moulding pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
