Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

    HINT:

    When removing the rear door lower outside moulding sub-assembly, heat the vehicle body and rear door lower outside moulding sub-assembly using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Rear Door Lower Outside Moulding Sub-assembly 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the vehicle body or rear door lower outside moulding sub-assembly excessively.

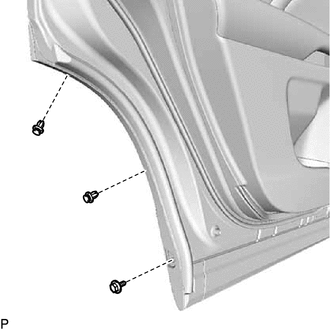

    1. Remove the screw.
      GTY450420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips.

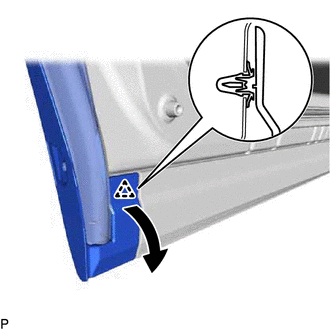

    3. Disengage the clip and turn back the rear door lower outside moulding sub-assembly as shown in the illustration.
      GTY423904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

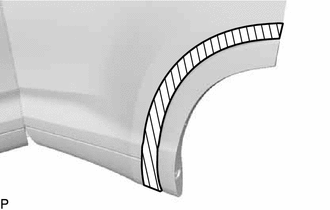

    4. Apply protective tape around the rear door lower outside moulding sub-assembly as shown in the illustration.
      GTY449767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

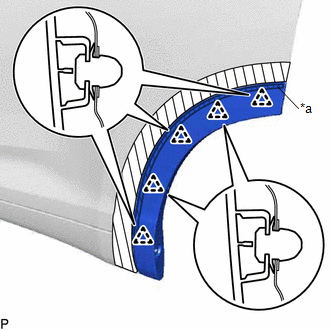

    5. Disengage the 5 clips and separate the double-sided tape to remove the rear door lower outside moulding sub-assembly.
      GTY434716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
  2. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    HINT:

    When removing the rear door outside moulding sub-assembly, heat the vehicle body and rear door outside moulding sub-assembly using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Rear Door Outside Moulding Sub-assembly 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the vehicle body or rear door outside moulding sub-assembly excessively.

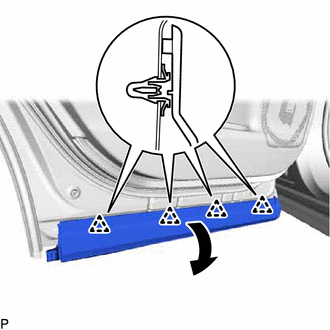

    1. Disengage the 4 clips and turn back the rear door outside moulding sub-assembly as shown in the illustration.
      GTY423906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

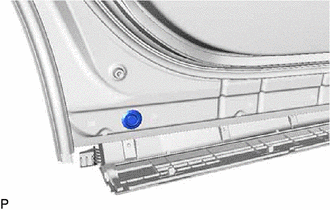

    2. Remove the hole plug.
      GTY423925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

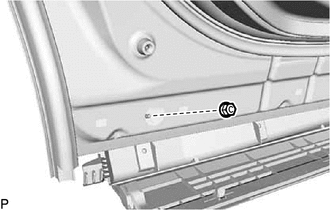

    3. Remove the nut.
      GTY423923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

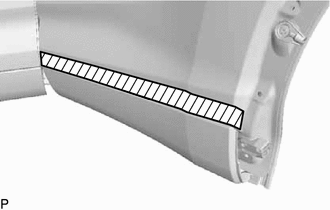

    4. Apply protective tape around the rear door outside moulding sub-assembly as shown in the illustration.
      GTY453962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

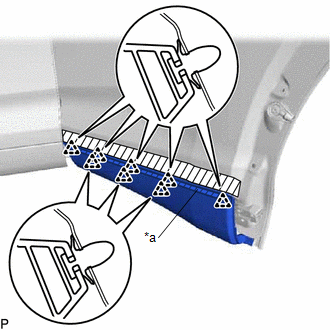

    5. Disengage the 8 clips and separate the double-sided tape to remove the rear door outside moulding sub-assembly.
      GTY437580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
    6. Remove the 8 clips.
    7. Remove the gasket.
  3. REMOVE REAR DOOR UPPER OUTSIDE MOULDING PAD

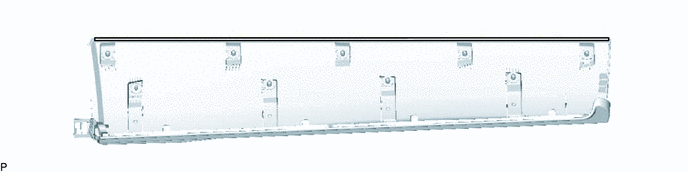

    1. Remove the rear door upper outside moulding pad.
      GTY431886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
