Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
Refer to REMOVAL [02/2014 - ]

DISCONNECT FRONT DOOR WEATHERSTRIP

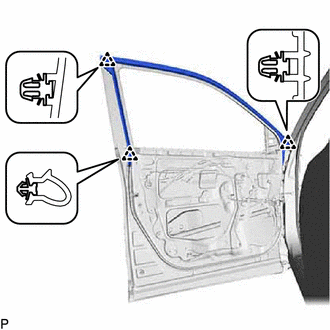

Disengage the 3 clips and disconnect the front door weatherstrip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING

HINT:

When removing the front door rear window frame moulding, heat the vehicle body and front door rear window frame moulding using a heat light.

HEATING TEMPERATURE

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Front Door Rear Window Frame Moulding	20 to 30°C (68 to 86°F)

NOTE:

Do not heat the vehicle body or moulding excessively.

Using a heat light, heat the front door rear window frame moulding.

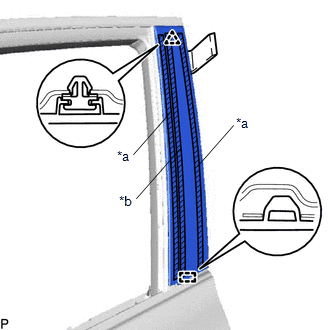

Using a moulding remover, disengage the clip and guide, and separate the double-sided tape and caulking sponge to remove the front door rear window frame moulding.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Double-sided Tape
*b	Caulking Sponge

REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING

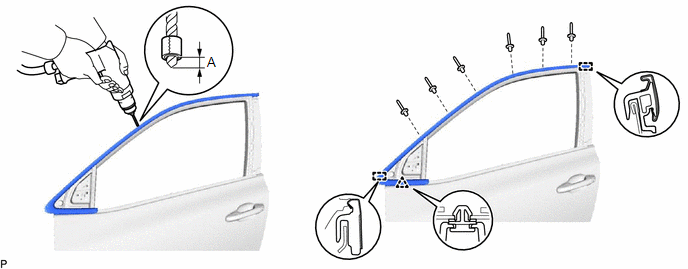

Insert a 4.0 mm (0.157 in.) drill bit into a drill.

Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Reference Measurement

Area	Measurement	Area	Measurement
A	5.0 mm (0.197 in.)	-	-

NOTE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 6 rivets.
NOTE:
- Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
- Prying the rivets with the drill may damage the rivet installation holes or drill bit.
- Be careful of the drilled rivets, as they may be hot.
Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
Disengage the 2 guides and clip to remove the front door upper window frame moulding from the door frame.
