Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    HINT:

    When removing the front door outside moulding sub-assembly, heat the vehicle body and front door outside moulding sub-assembly using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Vehicle Body 40 to 60°C (104 to 140°F)
    Front Door Outside Moulding Sub-assembly 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the vehicle body or front door outside moulding sub-assembly excessively.

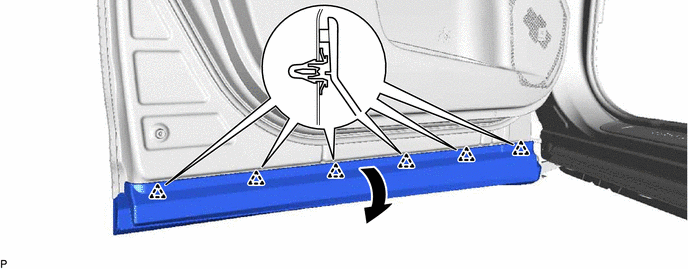

    1. Disengage the 6 clips and turn back the front door outside moulding sub-assembly as shown in the illustration.
      GTY423913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

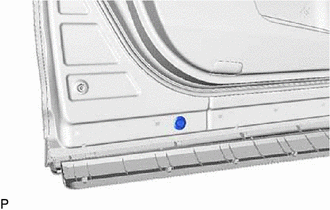

    2. Remove the hole plug.
      GTY423915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

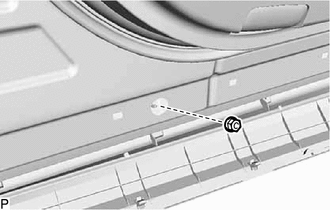

    3. Remove the nut.
      GTY423909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply protective tape around the front door outside moulding sub-assembly as shown in the illustration.
      GTY431058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

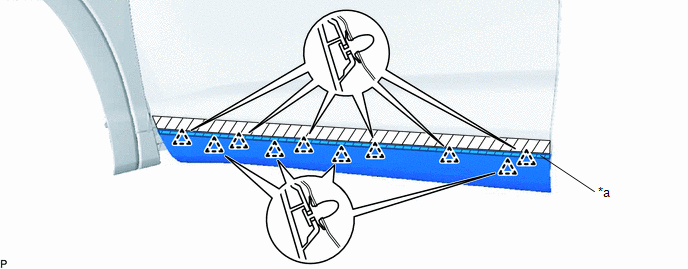

    5. Disengage the 10 clips and separate the double-sided tape to remove the front door outside moulding sub-assembly.
      GTY434245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
    6. Remove the 10 clips.
    7. Remove the gasket.
  2. REMOVE FRONT DOOR UPPER OUTSIDE MOULDING PAD

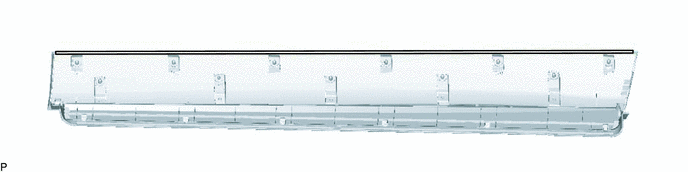

    1. Remove the front door upper outside moulding pad.
      GTY431885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
