Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE OUTER REAR VIEW MIRROR WITH COVER

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - ]

  2. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 18 , or refer to PROCEDURE - Step 18

  3. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 , or refer to PROCEDURE - Step 19

  4. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

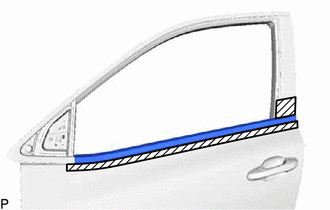

    1. Apply protective tape around the front door belt moulding assembly.
      GTY433217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

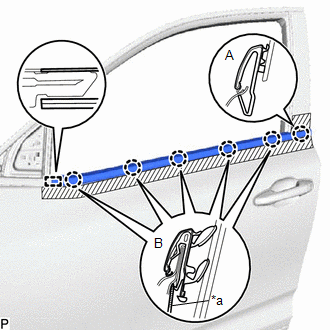

    2. Disengage the claw (A).
      GTY429738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Using a screwdriver with its tip wrapped with protective tape, disengage the 5 claws (B) as shown in the illustration.
    4. Disengage the guide and remove the front door belt moulding assembly.
