Removal [02/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative(-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [02/2014 - 11/2016] , or refer to PRECAUTION [12/2016 - ]
- REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1
- REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [02/2014 - 11/2016] , or refer to INITIALIZATION [12/2016 - ]
- REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5
- REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6
- REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
- REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8
- REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 , or refer to PROCEDURE - Step 10
- REMOVE FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 18 , or refer to PROCEDURE - Step 18
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 , or refer to PROCEDURE - Step 19
- REMOVE FRONT DOOR GLASS RUN
Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22
- DISCONNECT FRONT DOOR WEATHERSTRIP
See step 2
- REMOVE DOOR FRAME GARNISH
Refer to PROCEDURE - Step 39 , or refer to PROCEDURE - Step 39

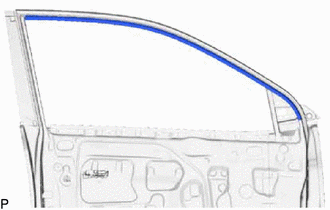

- REMOVE FRONT DOOR UPPER INNER BLACK OUT TAPE
- Using a heat light, heat the front door upper inner black out tape and vehicle body.HEATING TEMPERATURE
Item Temperature Front Door Upper Inner Black Out Tape and Vehicle Body 40 to 60°C (104 to 140°F) NOTE:Do not heat the vehicle body excessively.
- Pull back on one of the ends of the front door upper inner black out tape to remove it.
HINT:
When pulling on the front door upper inner black out tape, pull it parallel to the body.
- Using a heat light, heat the front door upper inner black out tape and vehicle body.

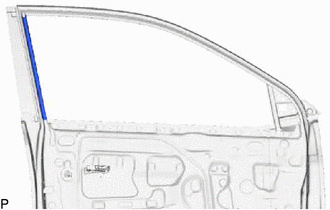

- REMOVE FRONT DOOR REAR INNER BLACK OUT TAPE
- Using a heat light, heat the front door rear inner black out tape and vehicle body.HEATING TEMPERATURE
Item Temperature Front Door Rear Inner Black Out Tape and Vehicle Body 40 to 60°C (104 to 140°F) NOTE:Do not heat the vehicle body excessively.
- Pull back on one of the ends of the front door rear inner black out tape to remove it.
HINT:
When pulling on the front door rear inner black out tape, pull it parallel to the body.
- Using a heat light, heat the front door rear inner black out tape and vehicle body.
