Removal [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE INTAKE MANIFOLD
Refer to REMOVAL [12/2013 - ]
- REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

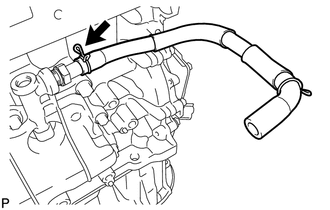

- Slide the clip and remove the No. 2 ventilation hose from the PCV valve (ventilation valve sub-assembly).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

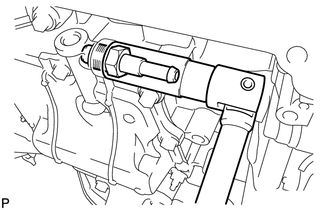

- Using a 19 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the ventilation case.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
