Installation [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL THERMOSTAT
    1. Install a new gasket to the thermostat.
    2. Install the thermostat to the water inlet housing.

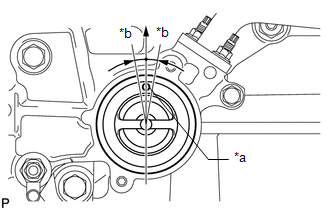

      GTY441610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Jiggle Valve
      *b 10°
      NOTE:

      The jiggle valve may be set within 10° on either side of the prescribed position.

  2. INSTALL WATER INLET
    1. Install the water inlet with the 2 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 44

  4. INSTALL GENERATOR ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]

  5. ADD ENGINE COOLANT

    See step  2 , or see step  2

  6. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1
