Components [02/2014 - 11/2015]: Illustration
WARNING: This page is about a different variant/trim than selected.

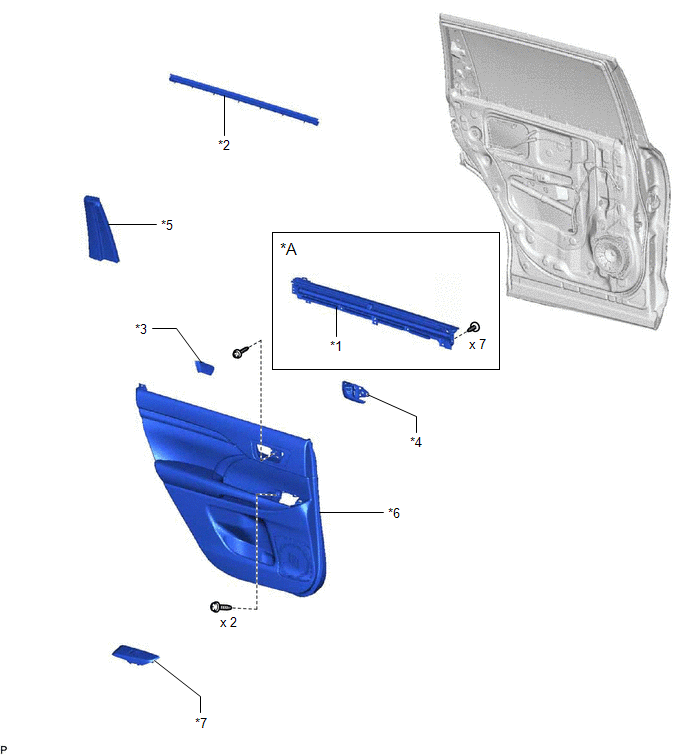

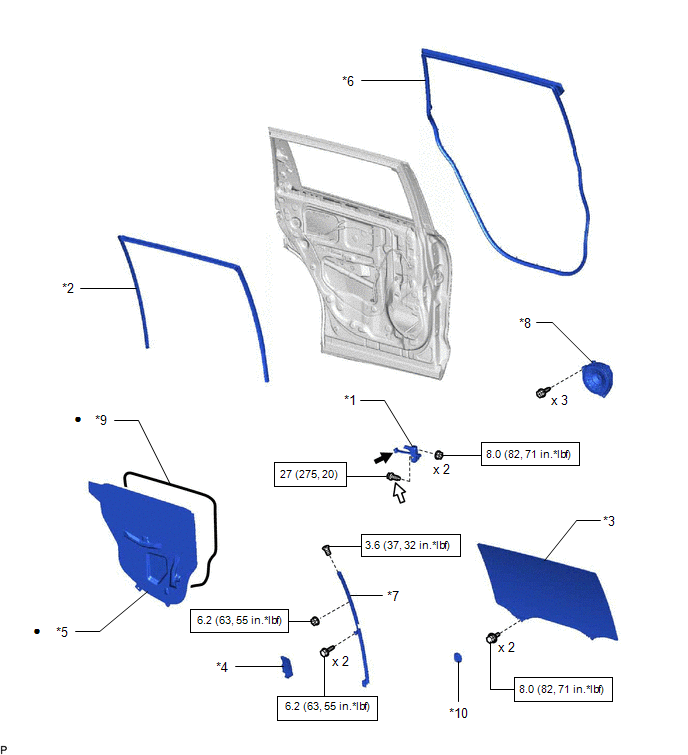

| *A | w/ Rear Door Sunshade | - | - |
| *1 | REAR CURTAIN SUB-ASSEMBLY | *2 | REAR DOOR INNER GLASS WEATHERSTRIP |
| *3 | REAR DOOR INSIDE HANDLE BEZEL PLUG | *4 | REAR DOOR INSIDE HANDLE SUB-ASSEMBLY |
| *5 | REAR DOOR REAR GUIDE SEAL | *6 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *7 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL | - | - |
| Callout | Description | Callout | Description |
| *1 | REAR DOOR CHECK ASSEMBLY | *2 | REAR DOOR GLASS RUN |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY | *4 | REAR DOOR PANEL PROTECTOR |
| *5 | REAR DOOR SERVICE HOLE COVER | *6 | REAR DOOR WEATHERSTRIP |
| *7 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY | *8 | REAR SPEAKER ASSEMBLY |
| *9 | BUTYL TAPE | *10 | GROMMET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |

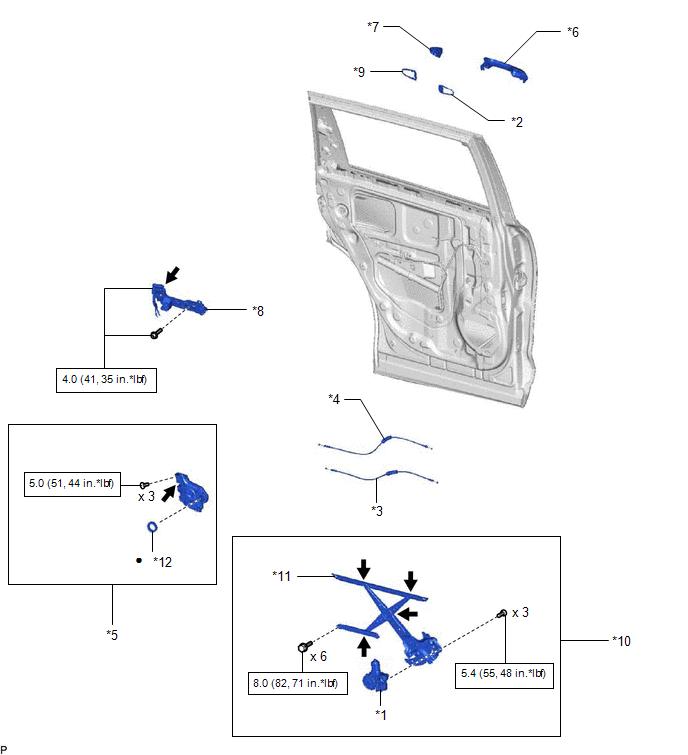

| Callout | Description | Callout | Description |
| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY | *2 | REAR DOOR FRONT OUTSIDE HANDLE PAD |
| *3 | REAR DOOR INSIDE LOCKING CABLE ASSEMBLY | *4 | REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY |
| *5 | REAR DOOR LOCK WITH MOTOR ASSEMBLY | *6 | REAR DOOR OUTSIDE HANDLE ASSEMBLY |
| *7 | REAR DOOR OUTSIDE HANDLE COVER | *8 | REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY |
| *9 | REAR DOOR REAR OUTSIDE HANDLE PAD | *10 | REAR DOOR WINDOW REGULATOR ASSEMBLY |
| *11 | REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY | *12 | DOOR LOCK WIRING HARNESS SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

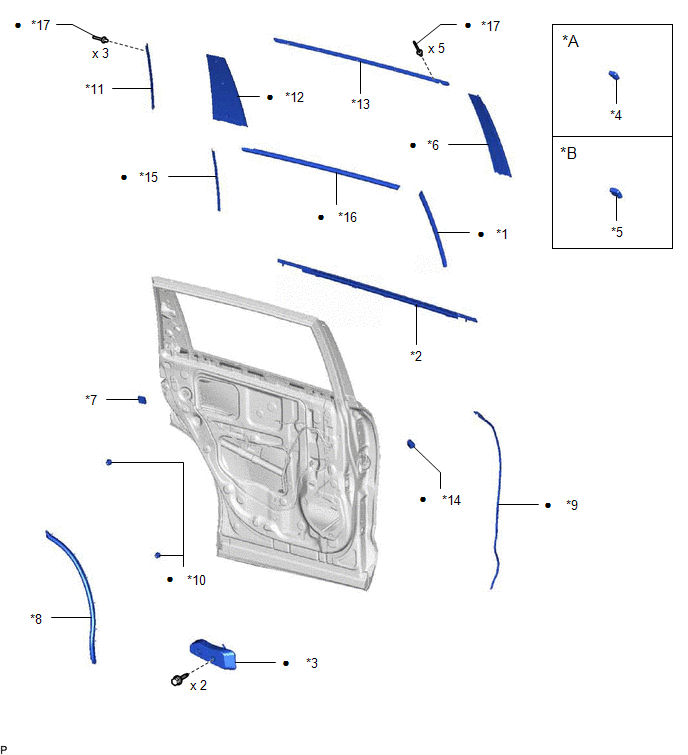

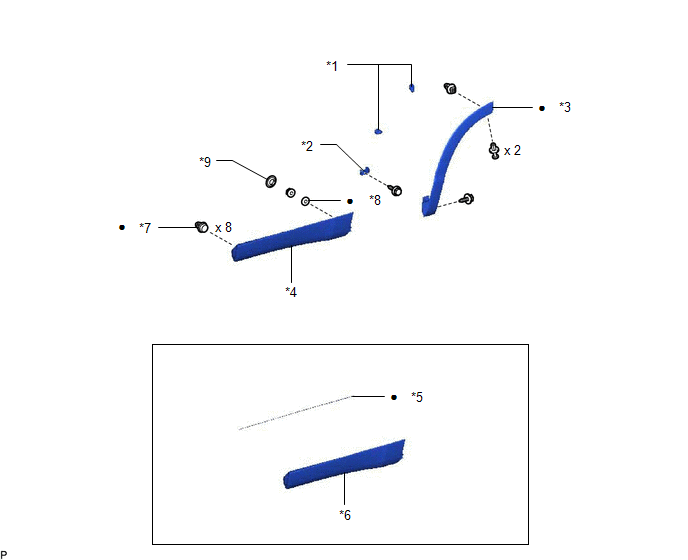

| *A | w/o Rear Door Sunshade | *B | w/ Rear Door Sunshade |
| *1 | FRONT INNER BLACK OUT TAPE | *2 | REAR DOOR BELT MOULDING ASSEMBLY |
| *3 | REAR DOOR CUSHION | *4 | REAR DOOR FRAME GARNISH |
| *5 | REAR DOOR FRAME GARNISH | *6 | REAR DOOR FRONT WINDOW FRAME MOULDING |
| *7 | REAR DOOR LOWER HOLE COVER | *8 | REAR DOOR NO. 2 WEATHERSTRIP |
| *9 | REAR DOOR NO. 3 WEATHERSTRIP | *10 | REAR DOOR PANEL CUSHION |
| *11 | REAR DOOR REAR UPPER OUTSIDE MOULDING | *12 | REAR DOOR REAR WINDOW FRAME MOULDING |
| *13 | REAR DOOR UPPER WINDOW FRAME MOULDING | *14 | REAR DOOR VENT SEAL |
| *15 | REAR INNER BLACK OUT TAPE | *16 | UPPER INNER BLACK OUT TAPE |
| *17 | RIVET | - | - |
| • | Non-reusable part | - | - |
