Adjustment [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT REAR DOOR

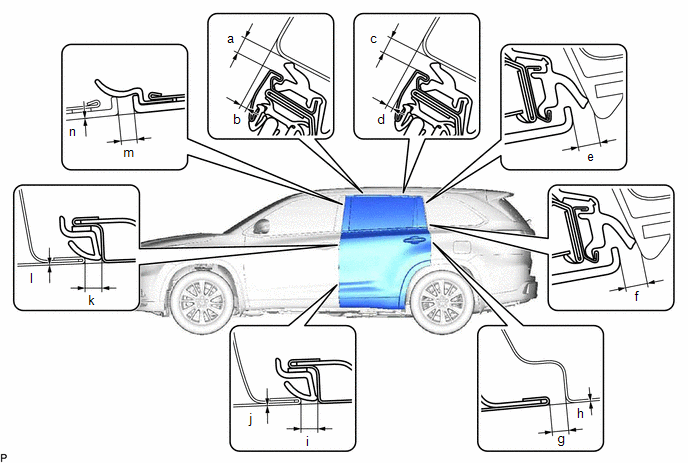

Check that the clearance measurements of areas "a" through "n" are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.35 to 6.35 mm (0.132 to 0.250 in.)	b	0.65 to 6.35 mm (0.0256 to 0.250 in.)
c	3.35 to 6.35 mm (0.132 to 0.250 in.)	d	0.75 to 3.75 mm (0.0295 to 0.148 in.)
e	4.5 to 8.5 mm (0.177 to 0.335 in.)	f	4.5 to 8.5 mm (0.177 to 0.335 in.)
g	3.5 to 5.5 mm (0.138 to 0.217 in.)	h	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
i	3.2 to 5.6 mm (0.126 to 0.220 in.)	j	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
k	3.2 to 5.6 mm (0.126 to 0.220 in.)	l	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
m	4.3 to 6.3 mm (0.169 to 0.248 in.)	n	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)

ADJUST REAR DOOR

NOTE:

Make sure to turn the power switch off when adjusting door lock strikers.

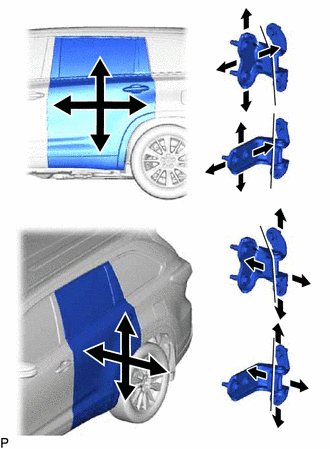

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

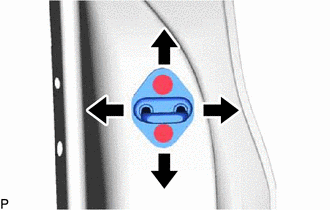

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
