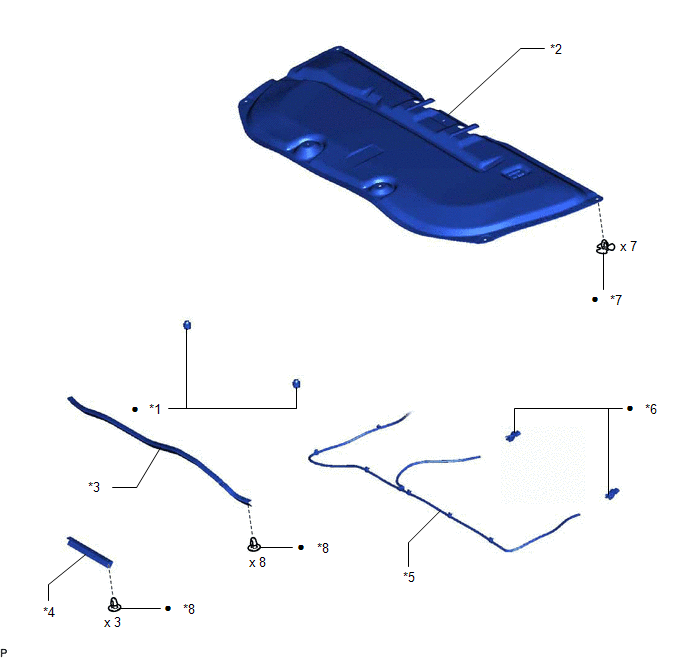

Components [02/2014 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
HOOD CUSHION |
*2 |
HOOD INSULATOR |
| *3 |
HOOD TO RADIATOR SUPPORT SEAL |
*4 |
HOOD TO RADIATOR SUPPORT SEAL |
| *5 |
WASHER HOSE ASSEMBLY |
*6 |
WASHER NOZZLE SUB-ASSEMBLY |
| *7 |
HOOD INSULATOR CLIP |
*8 |
HOOD TO RADIATOR SUPPORT SEAL CLIP |
| • |
Non-reusable part |
- |
- |
