Adjustment [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT HOOD SUB-ASSEMBLY

    See step  1

  2. ADJUST HOOD SUB-ASSEMBLY

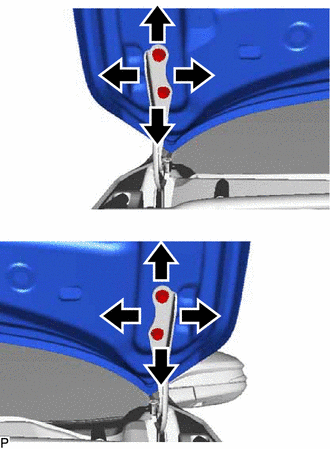

    1. Horizontally and vertically adjust the hood.
      1. Loosen the hinge bolts of the hood.
        GTY429942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Adjust the clearance between the hood and front fender by moving the hood.
      3. Tighten the hinge bolts after adjustment.

        Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

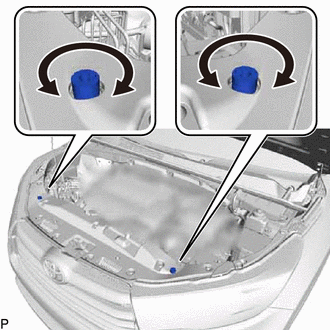

    2. Adjust the height of the front end of the hood using the hood bumper cushions.
      1. Adjust the hood bumper cushions so that the heights of the hood and fender are aligned.

        HINT:

        Raise or lower the front end of the hood by turning the hood bumper cushions.

        GTY429943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/o Dynamic Radar Cruise Control System:
      1. Remove radiator grille.

        Refer to REMOVAL [02/2014 - 11/2016]

    4. w/ Dynamic Radar Cruise Control System:
      1. Remove millimeter wave radar sensor assembly.

        Refer to REMOVAL [02/2014 - 11/2016]

    5. Adjust the hood lock.
      1. Using a screwdriver, remove the hood lock nut cap.
        GTY427306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape

        HINT:

        Tape the screwdriver tip before use.

      2. Loosen the 2 bolts and hood lock bolt.
        GTY433060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Hood Lock Bolt

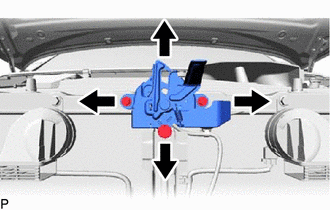

      3. Adjust the hood lock and tighten the 2 bolts and hood lock bolt.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

        GTY451733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Check that the striker can engage with the hood lock smoothly.
      5. Install a new hood lock nut cap.
        GTY429938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/o Dynamic Radar Cruise Control System:
      1. Install radiator grille.

        Refer to INSTALLATION [02/2014 - 11/2016]

    7. w/ Dynamic Radar Cruise Control System:
      1. Install millimeter wave radar sensor assembly.

        Refer to INSTALLATION [02/2014 - 11/2016]
