Components [02/2014 - 11/2015]: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Front Door Replacement Components (1 Of 6)
GTY438144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DECK BOARD ASSEMBLY *2 NO. 3 DECK BOARD SUB-ASSEMBLY

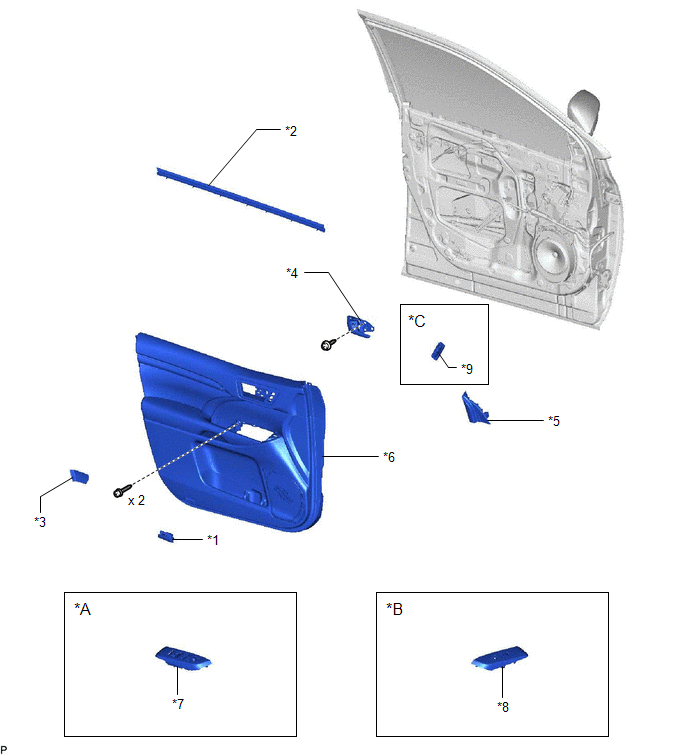

Fig 1: Front Door Replacement Components (2 Of 6)
GTY448435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Driver Side *B for Front Passenger Side
*C w/ Memory - -
*1 COURTESY LIGHT ASSEMBLY *2 FRONT DOOR INNER GLASS WEATHERSTRIP
*3 FRONT DOOR INSIDE HANDLE BEZEL PLUG *4 FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
*5 FRONT DOOR LOWER FRAME BRACKET GARNISH *6 FRONT DOOR TRIM BOARD SUB-ASSEMBLY
*7 POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL *8 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
*9 SEAT MEMORY SWITCH - -

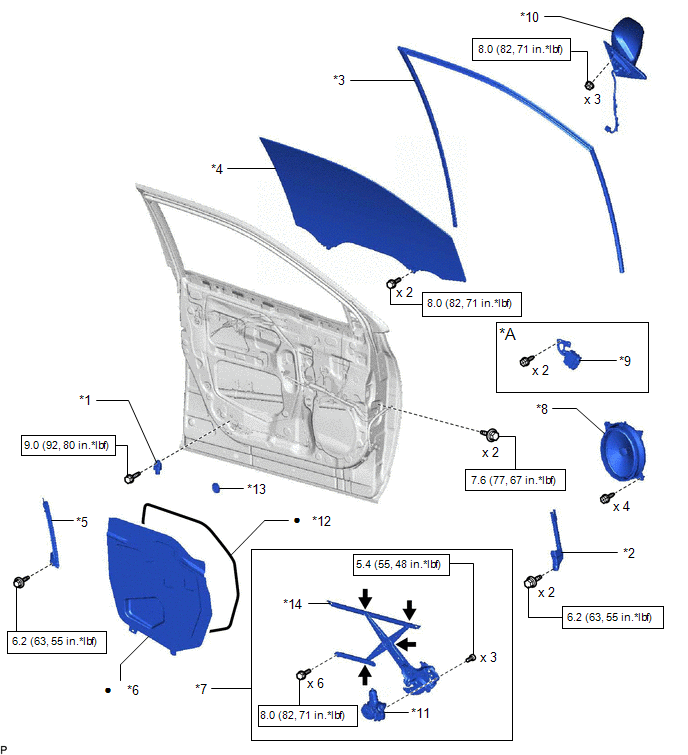

Fig 1: Front Door Replacement Components With Torque Specifications (3 Of 6)
GTY428907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Memory - -
*1 DOOR SIDE AIR BAG SENSOR *2 FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
*3 FRONT DOOR GLASS RUN *4 FRONT DOOR GLASS SUB-ASSEMBLY
*5 FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY *6 FRONT DOOR SERVICE HOLE COVER
*7 FRONT DOOR WINDOW REGULATOR ASSEMBLY *8 FRONT NO. 1 SPEAKER ASSEMBLY
*9 OUTER MIRROR CONTROL ECU ASSEMBLY *10 OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER
*11 POWER WINDOW REGULATOR MOTOR ASSEMBLY *12 BUTYL TAPE
*13 GROMMET *14 FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -

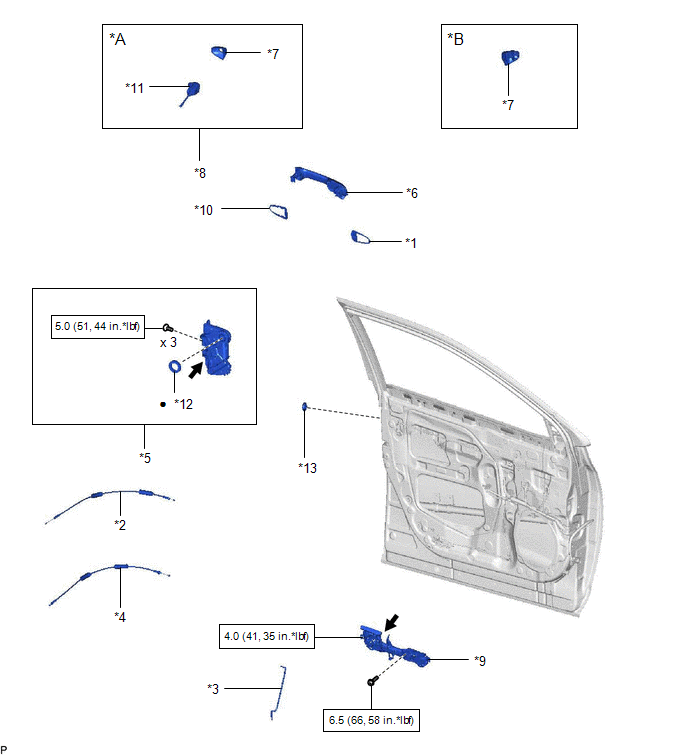

Fig 1: Front Door Replacement Components With Torque Specifications (4 Of 6)
GTY435818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Driver Side *B for Front Passenger Side
*1 FRONT DOOR FRONT OUTSIDE HANDLE PAD *2 FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY
*3 FRONT DOOR LOCK OPEN ROD *4 FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
*5 FRONT DOOR LOCK WITH MOTOR ASSEMBLY *6 FRONT DOOR OUTSIDE HANDLE ASSEMBLY
*7 FRONT DOOR OUTSIDE HANDLE COVER *8 FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY
*9 FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY *10 FRONT DOOR REAR OUTSIDE HANDLE PAD
*11 LOCK CYLINDER ASSEMBLY *12 DOOR LOCK WIRING HARNESS SEAL
*13 HOLE PLUG - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -

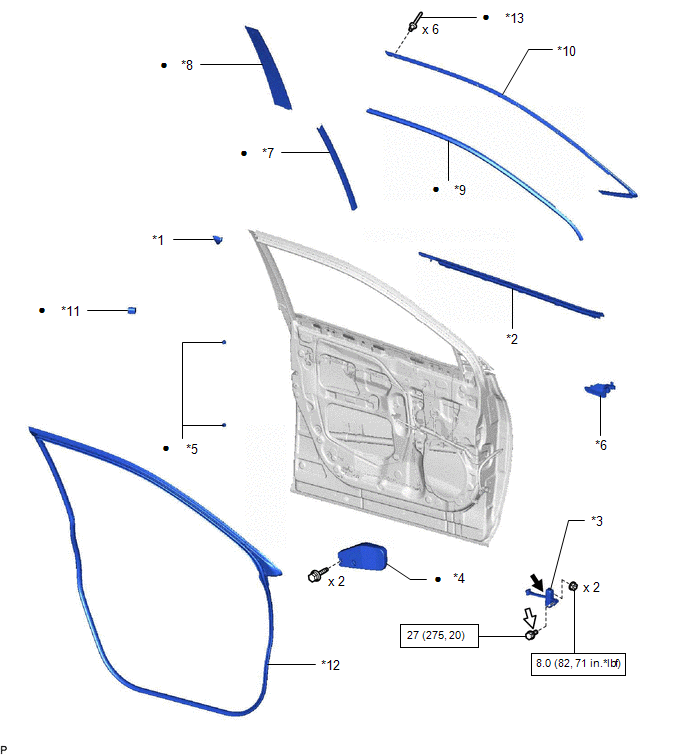

Fig 1: Front Door Replacement Components With Torque Specifications (5 Of 6)
GTY431838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DOOR FRAME GARNISH *2 FRONT DOOR BELT MOULDING ASSEMBLY
*3 FRONT DOOR CHECK ASSEMBLY *4 FRONT DOOR NO. 2 STIFFENER CUSHION
*5 FRONT DOOR PANEL CUSHION *6 FRONT DOOR PANEL PROTECTOR
*7 FRONT DOOR REAR INNER BLACK OUT TAPE *8 FRONT DOOR REAR WINDOW FRAME MOULDING
*9 FRONT DOOR UPPER INNER BLACK OUT TAPE *10 FRONT DOOR UPPER WINDOW FRAME MOULDING
*11 FRONT DOOR VENT SEAL *12 FRONT DOOR WEATHERSTRIP
*13 RIVET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -

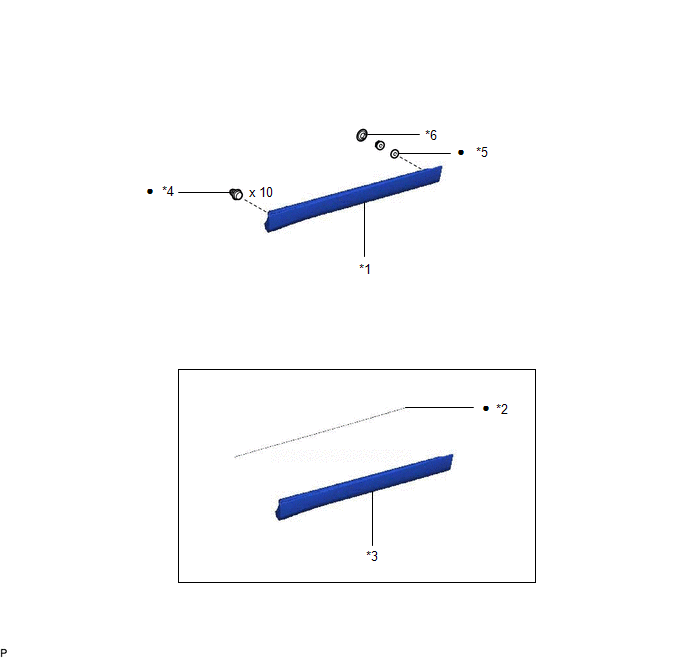

Fig 1: Front Door Replacement Components (6 Of 6)
GTY441541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY *2 FRONT DOOR UPPER OUTSIDE MOULDING PAD
*3 FRONT DOOR OUTSIDE MOULDING *4 CLIP
*5 GASKET *6 GASKET
• Non-reusable part - -
