Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE MAP LIGHT ASSEMBLY
    1. for Normal Roof:
      1. Using a moulding remover, disengage the 4 clips.

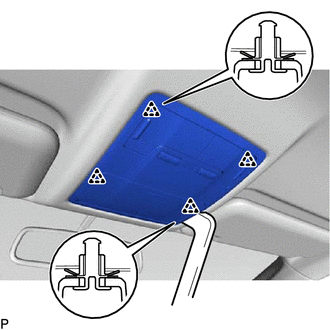

        GTY437633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector to remove the map light assembly.
    2. for Sliding Roof, Panoramic Moon Roof:
      1. Using a moulding remover, disengage the 4 clips.
        GTY453413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector to remove the map light assembly.
  2. REMOVE MAP LIGHT BULB
    1. Turn the 2 map light sockets with the 2 map light bulbs as shown in the illustration to remove them as a unit.
      GTY453411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 map light bulbs from the 2 map light sockets.
