Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL MAP LIGHT BULB
    1. Install the 2 map light bulbs to the 2 map light sockets.
    2. Turn the 2 map light sockets with the 2 map light bulbs as shown in the illustration to install them as a unit.

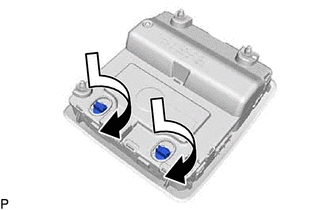

      GTY437628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL MAP LIGHT ASSEMBLY
    1. for Normal Roof:
      1. Connect the connector.
      2. Engage the 4 clips to install the map light assembly.

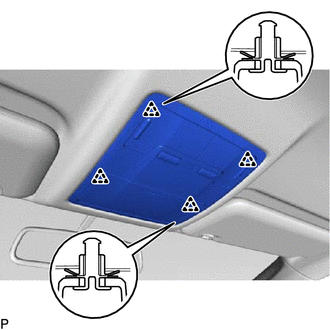

        GTY437632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Sliding Roof, Panoramic Moon Roof:
      1. Connect the connector.
      2. Engage the 4 clips to install the map light assembly.

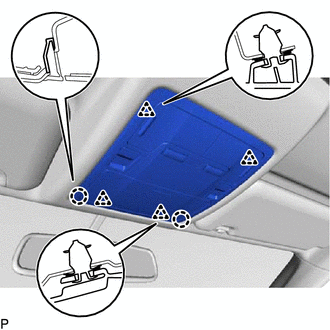

        GTY437634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
