Removal [02/2014 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY452006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disconnect the connector to remove the No. 1 room light assembly.
  2. REMOVE NO. 1 ROOM LIGHT BULB

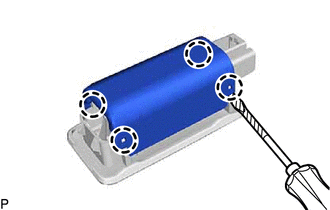

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the shade from the No. 1 room light lens.
      GTY443778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the No. 1 room light bulb from the No. 1 room light lens.
