Installation [02/2014 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 ROOM LIGHT BULB
    1. Install the No. 1 room light bulb to the No. 1 room light lens.
    2. Engage the 4 claws to install the shade to the No. 1 room light lens.

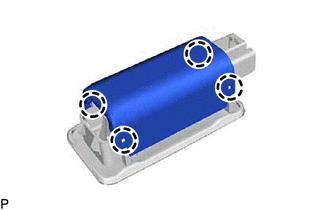

      GTY455298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the claw to install the No. 1 room light assembly.

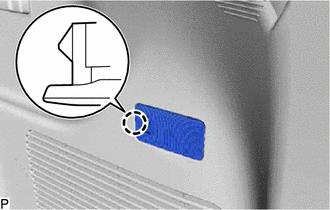

      GTY437631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
