Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
    1. Connect the connector.

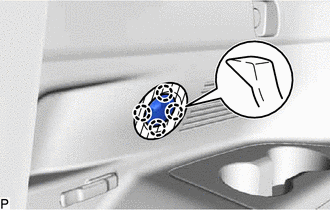

    2. Engage the 4 claws to install the cooler (No. 2 room temp. sensor) thermistor.
      GTY426288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    3. Remove the protective tape.
