Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE PROTECTOR
    1. Disengage the 2 guides as shown in the illustration.
      GTY449939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the protector.
      GTY456064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY

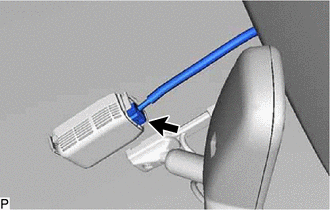

    1. Disconnect the connector.
      GTY449942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the stopper by pulling it down.
      GTY450306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
    3. Disengage the 4 guides to remove the air conditioning thermistor assembly as shown in the illustration.
      GTY433983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
