Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL AIR CONDITIONING THERMISTOR ASSEMBLY
    1. Engage the 4 guides, and carefully install the air conditioning thermistor assembly to the glass surface, preventing air bubbles from forming between the contact surfaces.

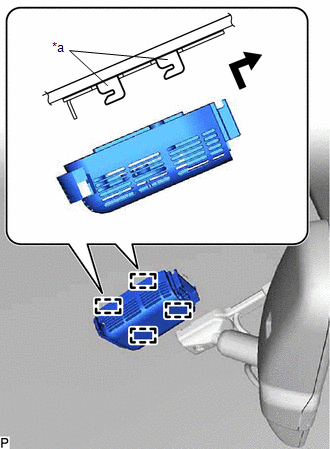

      GTY453323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
    2. Push in the stopper.

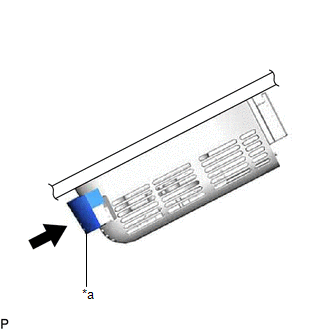

      GTY452462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
    3. Connect the connector.
  2. INSTALL PROTECTOR
    1. Engage the 2 claws to temporarily install the protector.
    2. Engage the 2 guides to install the protector.

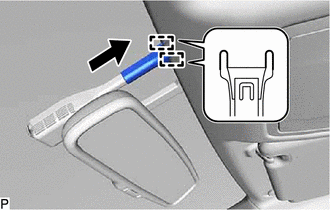

      GTY456056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
