Installation [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 3 exhaust manifold heat insulator to the exhaust manifold with the 3 bolts.

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

  2. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold with the 2 bolts.

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

  3. INSTALL EXHAUST MANIFOLD
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold with the 5 nuts.
    3. Tighten the 5 nuts in the order shown in the illustration.

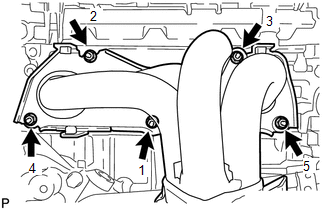

      Fig 1: Exhaust Manifold Tightening Sequence
      GTY441286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 1 exhaust manifold heat insulator to the exhaust manifold with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  5. INSTALL NO. 2 MANIFOLD STAY
    1. Install the No. 2 manifold stay to the exhaust manifold and stiffening crankcase assembly with the bolt and nut.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  6. INSTALL MANIFOLD STAY
    1. Install the manifold stay to the exhaust manifold and stiffening crankcase assembly with the bolt and nut.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Front Catalyst)
    1. Using a vernier caliper, measure the free length of the 2 compression springs.
      GTY146446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Minimum 41.5 mm (1.63 in.)

      If the free length is less than minimum, replace the compression spring.

    2. Temporarily install a new gasket to the exhaust manifold.
    3. Using a plastic hammer and wooden block, tap in the gasket until its surface is flush with the exhaust manifold.
      GTY442825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Exhaust Manifold
      *2 Gasket
      *a Wooden Block
      NOTE:
      • Be sure to install the gasket in the correct direction.
      • Do not reuse the gasket.
      • Do not damage the gasket.
      • Do not push in the gasket by using the exhaust pipe when connecting it.
    4. Install a new gasket to the front exhaust pipe assembly (TWC: Front Catalyst).
    5. Install the front exhaust pipe assembly (TWC: Front Catalyst) with the 2 compression springs and 4 bolts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      HINT:

      After installation, check that the space between the flanges of the exhaust manifold and front exhaust pipe assembly (TWC: Front Catalyst) is consistent front-to-rear and left-to-right.

      GTY433722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Exhaust Manifold
      *2 Front Exhaust Pipe Assembly (TWC: Front Catalyst)
      *3 Gasket
      *a Space between Flanges: 8.5 mm (0.335 in.)
      GTY446709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT FLOOR COVER LH
    1. GTY454210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw

      Connect the 2 clips (B) to install the front floor cover LH.

    2. Install the clip (A), 2 screws and 4 bolts to the front floor cover LH.
  9. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 80

  10. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 81

  11. INSTALL AIR FUEL RATIO SENSOR

    Refer to PROCEDURE - Step 1

  12. INSPECT FOR EXHAUST GAS LEAK

    See step  8
