Removal [02/2014 - 11/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 5

  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 6

  3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 7

  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 8

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE OUTER REAR VIEW MIRROR WITH COVER
    1. w/o Memory:

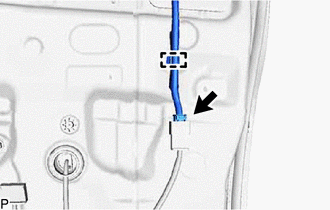

      1. Disconnect the connector.
        GTY423359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
    2. w/ Memory:

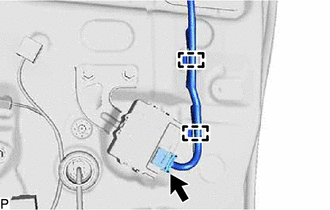

      1. Disconnect the connector.
        GTY423361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 clamps.

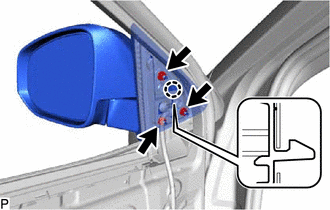

    3. Remove the 3 nuts.
      GTY423360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claw and remove the outer rear view mirror with cover.
