Removal [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6

  3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 , or refer to PROCEDURE - Step 10

  7. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY

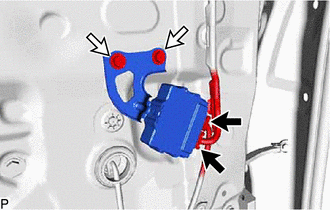

    1. Disconnect the 2 connectors.
      GTY423364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and outer mirror control ECU assembly.
