System Diagram [11/2016 - ]

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

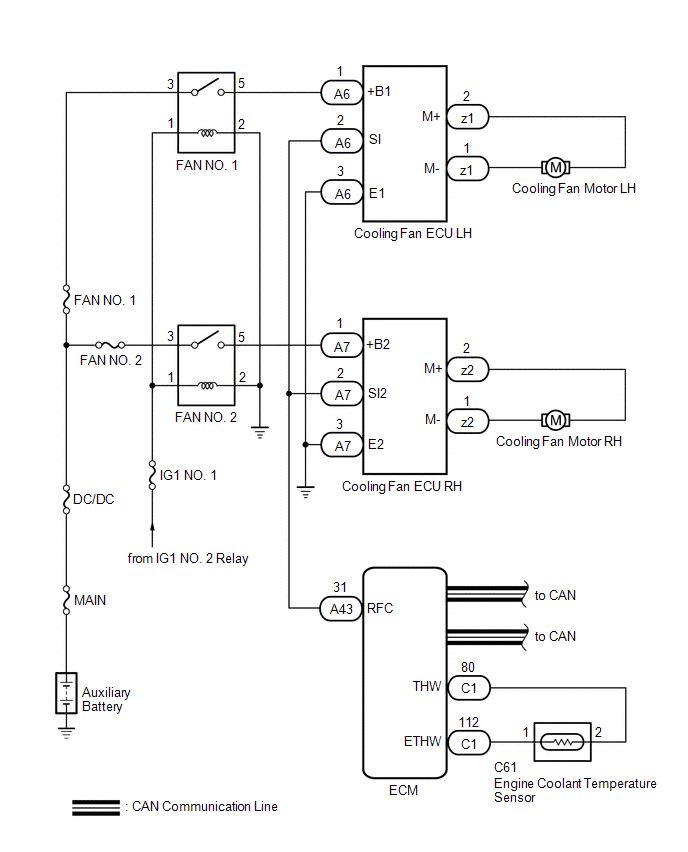

Fig 1: Cooling Fan System Wiring Diagram
GTY732015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
