Rear Spoiler Components Overview [12/2013 - ]

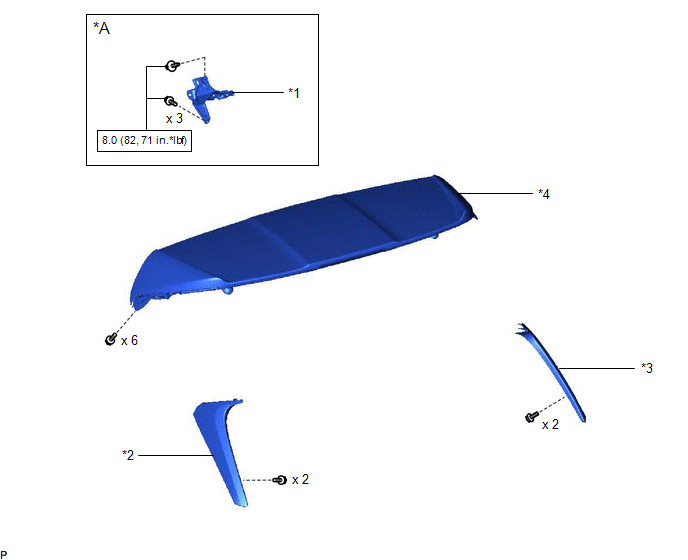

| Callout | Description | Callout | Description |
| *A | for Fixed Glass Type | - | - |
| *1 | BACK DOOR GLASS GUIDE BRACKET SUB-ASSEMBLY | *2 | REAR SIDE SPOILER SUB-ASSEMBLY LH |
| *3 | REAR SIDE SPOILER SUB-ASSEMBLY RH | *4 | REAR SPOILER SUB-ASSEMBLY |

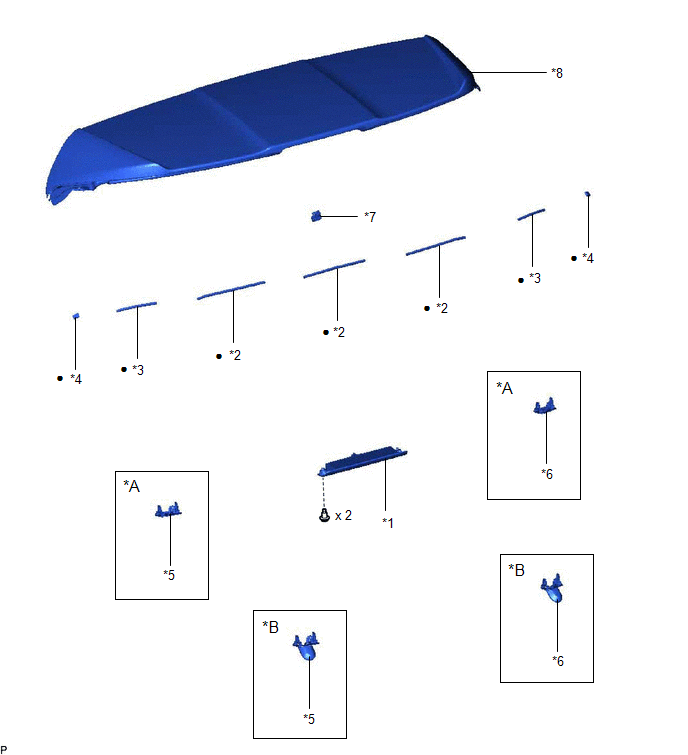

| *A | for Fixed Glass Type | *B | for Glass Hatch Type |
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | NO. 1 REAR SPOILER PROTECTOR |
| *3 | NO. 2 REAR SPOILER PROTECTOR | *4 | NO. 3 REAR SPOILER PROTECTOR |
| *5 | REAR SPOILER COVER LH | *6 | REAR SPOILER COVER RH |
| *7 | REAR WASHER NOZZLE | *8 | REAR SPOILER |
| • | Non-reusable part | - | - |
