Removal [12/2013 - ]: Procedure

  1. REMOVE SYMBOL EMBLEM

    See step  10

  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Apply protective tape around the No. 2 luggage compartment door name plate.

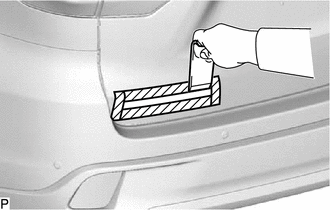

      GTY443834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 2 luggage compartment door name plate.
      NOTE:

      Be careful not to damage the vehicle body.

  3. REMOVE NO. 5 BACK DOOR NAME PLATE
    1. Apply protective tape around the No. 5 back door name plate.

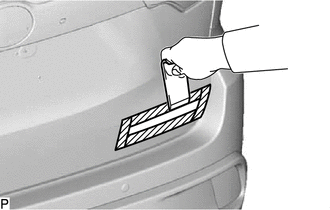

      GTY426135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 5 back door name plate.
      NOTE:

      Be careful not to damage the vehicle body.

  4. REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR PLATE
    1. Apply protective tape around the No. 4 luggage compartment door plate.

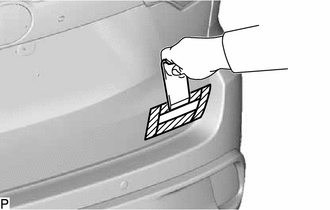

      GTY440952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 4 luggage compartment door plate.
      NOTE:

      Be careful not to damage the vehicle body.
