DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [11/2015 - 11/2016]: Wiring Diagram

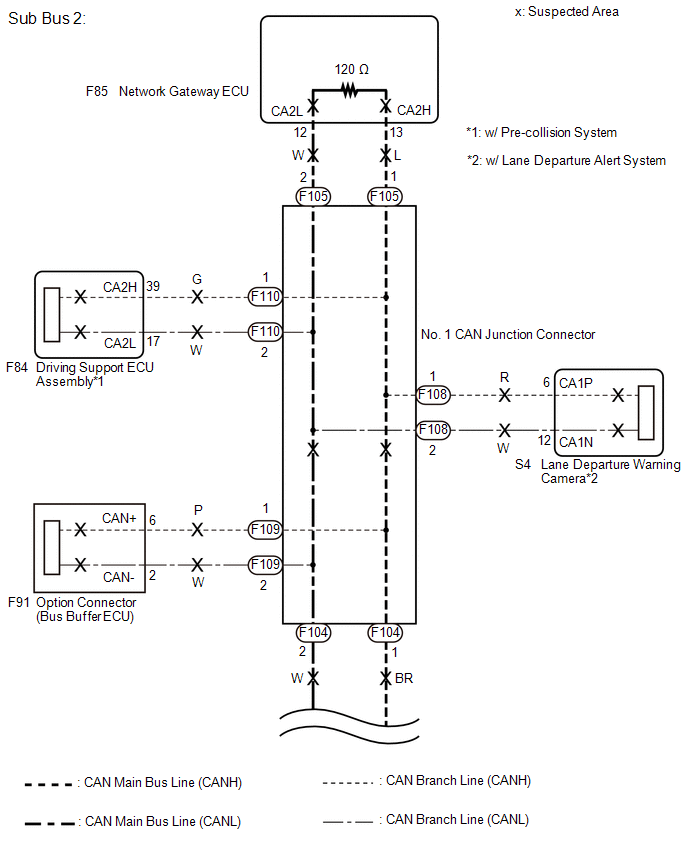

GTY600024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

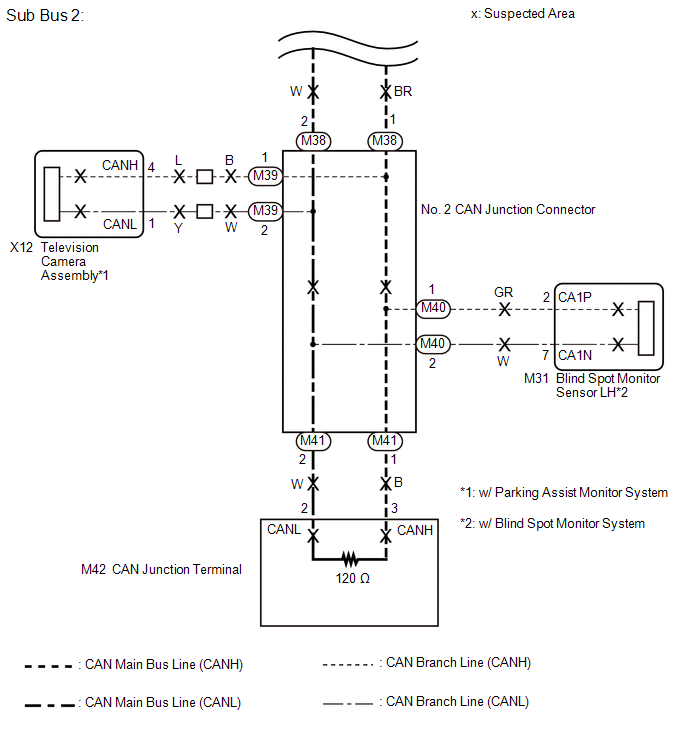

GTY437226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
