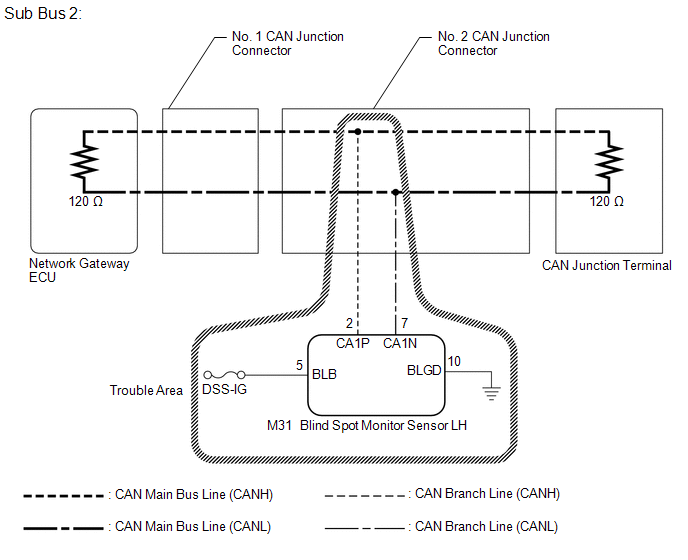

DTC U0233: Lost Communication with Blind Spot Monitor Master Module [12/2013 - 11/2016]: Wiring Diagram

GTY429904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
