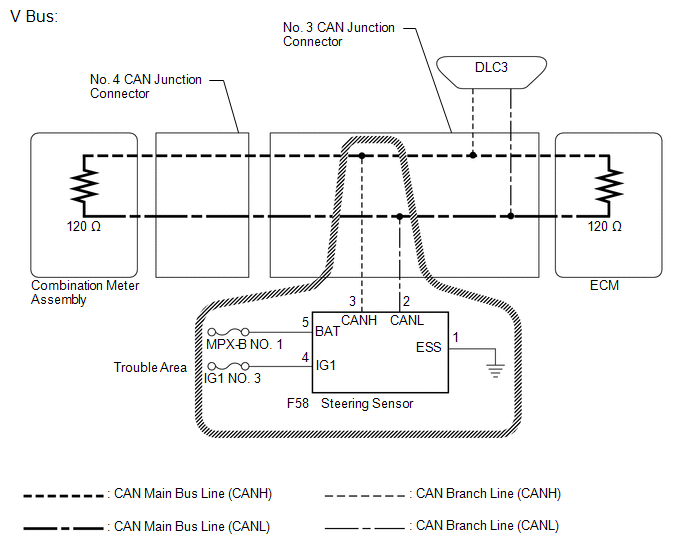

Steering Angle Sensor Communication Stop Mode [12/2013 - 11/2016]: Wiring Diagram

GTY438742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
