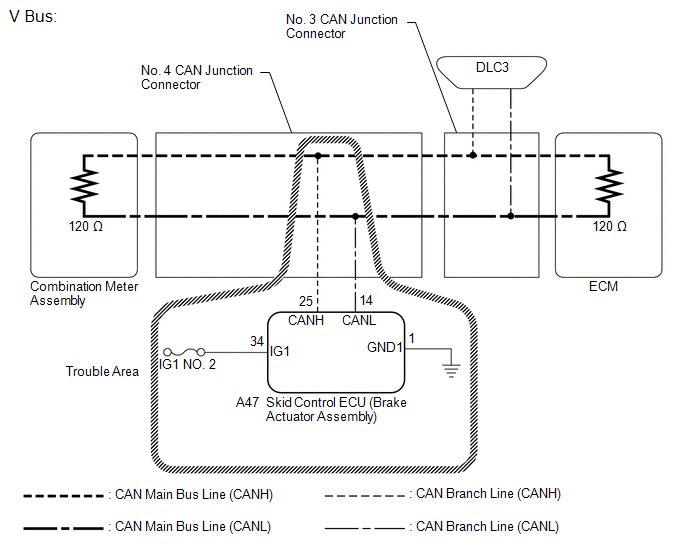

Brake Actuator (Skid Control ECU) Communication Stop Mode [12/2013 - 11/2016]: Wiring Diagram

GTY449700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
