Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.

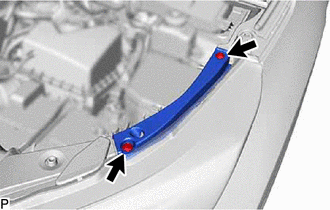

  1. REMOVE RADIATOR SIDE DEFLECTOR SEAL LH
    1. Remove the 2 clips and radiator side deflector seal LH.
      GTY427543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

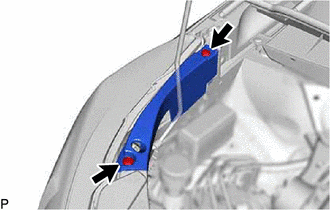

  2. REMOVE RADIATOR SIDE SEAL RH
    1. Remove the 2 clips and radiator side seal RH.
      GTY427540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 7 clips and cool air intake duct seal.
      GTY427541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE RADIATOR GRILLE

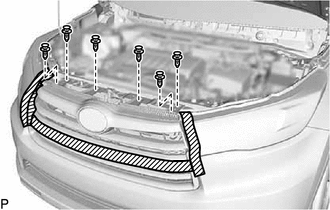

    1. Put protective tape around the radiator grille.
      GTY425068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

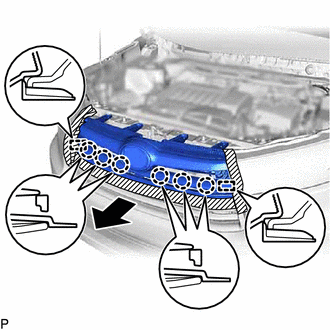

    2. Remove the 6 clips.
    3. Disengage the 6 claws and 2 guides and remove the radiator grille as shown in the illustration.
      GTY427545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. Remove the 2 screws.
      GTY451213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and 2 guides to remove the radiator grille (or front panel) emblem.
  6. REMOVE RADIATOR GRILLE MOULDING
    1. Remove the screw.
      GTY427544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws to remove the radiator grille moulding.
      GTY427542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
