Removal [02/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016]

  2. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    Refer to PROCEDURE - Step 32 , or refer to PROCEDURE - Step 32

  3. REMOVE RESERVOIR BRACKET

    Refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 33

  4. REMOVE NO. 2 EGR PIPE

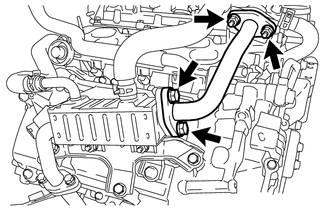

    1. Remove the 2 nuts, 2 bolts, No. 2 EGR pipe, EGR valve gasket and No. 2 EGR pipe gasket from the EGR valve assembly and EGR cooler assembly.
      GTY433068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EGR COOLER ASSEMBLY

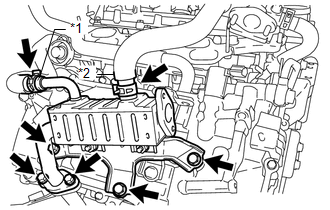

    1. Slide the 2 clips and disconnect the No. 6 water by-pass hose and No. 7 water by-pass hose from the EGR cooler assembly.
      GTY432895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 6 Water By-pass Hose
      *2 No. 7 Water By-pass Hose
    2. Remove the 5 bolts, EGR cooler assembly, EGR cooler bracket and EGR inlet gasket from cylinder head cover sub-assembly and No. 1 EGR pipe.
    3. GTY306252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 nuts and EGR cooler bracket from the EGR cooler assembly.
