Highlander LE Plus, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Electrical Harness/Wiring Routing (Except Hybrid)
>>
Position Of Parts In Body
>>
Notes
Position Of Parts In Body: Notes

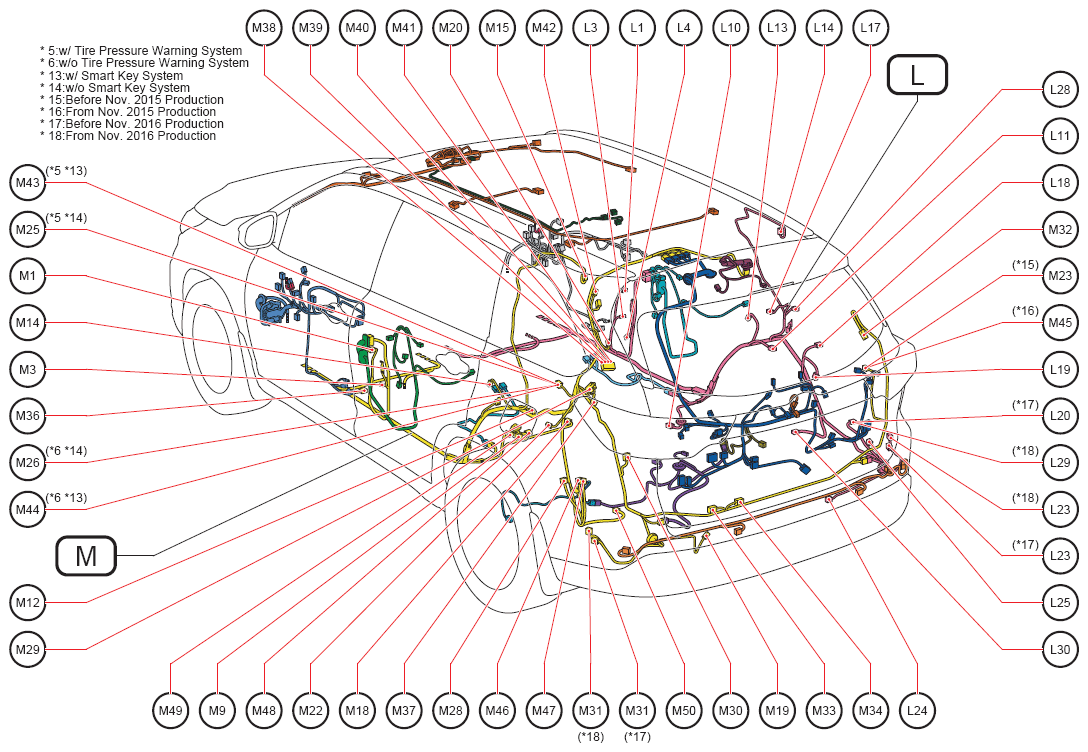

Fig 1: Position Of Parts In Body (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Position Of Parts In Body (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Position Of Parts In Body (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Position Of Parts In Body (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
