DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [11/2016 - ]: Wiring Diagram

  1. w/ Seat Position Memory
    GTY737818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

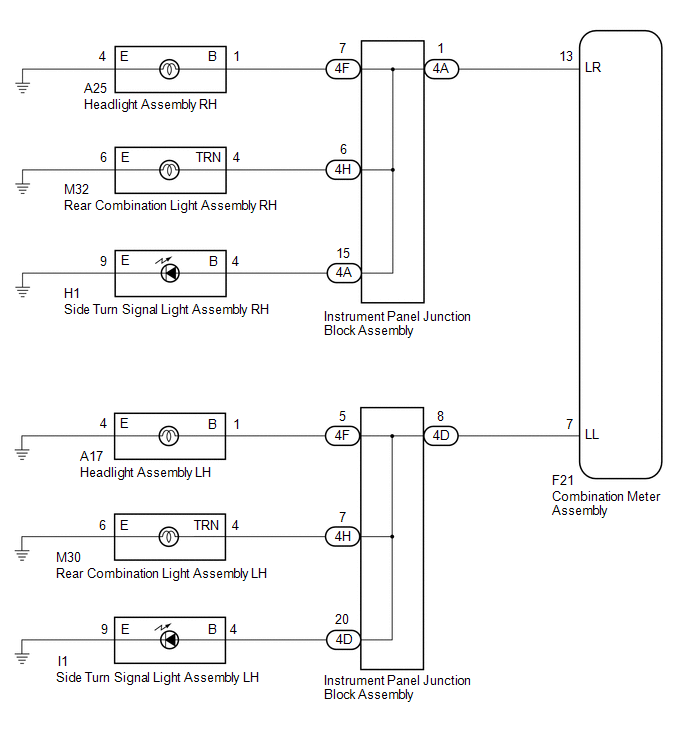

  2. w/o Seat Position Memory
    GTY694880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
