Components [12/2013 - ]: Illustration
Fig 1: Front Drive Shaft Assembly (For 1AR-FE) Replacement Components With Torque Specifications (1 Of 4)
| Callout | Description | Callout | Description |
| *1 | FRONT AXLE SHAFT NUT | *2 | FRONT DRIVE SHAFT ASSEMBLY |
| *3 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | *4 | FRONT SPEED SENSOR |
| *5 | FRONT STABILIZER LINK ASSEMBLY | *6 | TIE ROD ASSEMBLY |
| *7 | FRONT AXLE ASSEMBLY | *8 | COTTER PIN |
| *9 | FRONT FLEXIBLE HOSE | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | Toyota Body Grease W |

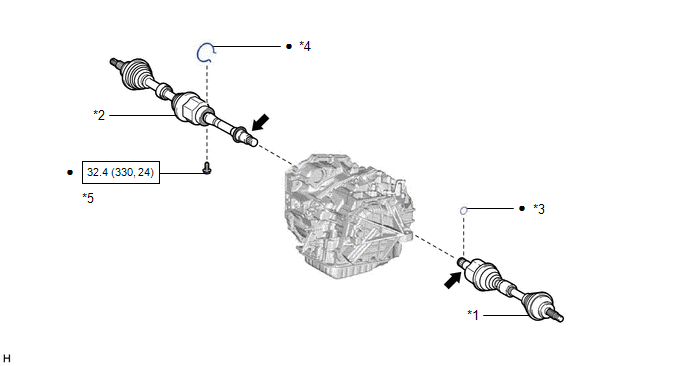

Fig 1: Front Drive Shaft Assembly (For 1AR-FE) Replacement Components With Torque Specifications (2 Of 4)
| Callout | Description | Callout | Description |
| *1 | FRONT DRIVE SHAFT ASSEMBLY LH | *2 | FRONT DRIVE SHAFT ASSEMBLY RH |
| *3 | FRONT DRIVE SHAFT HOLE SNAP RING | *4 | BEARING BRACKET HOLE SNAP RING |
| *5 | NO. 1 DRIVE SHAFT BEARING BRACKET SETTING BOLT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| ATF WS | - | - |

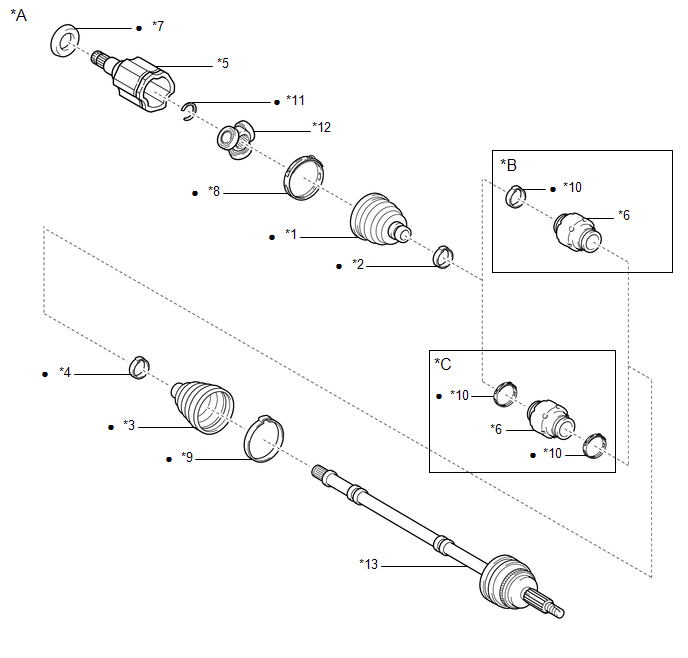

| *A | for LH Side | *B | w/ 1 Clamp |
| *C | w/ 2 Clamps | - | - |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT DAMPER |
| *7 | FRONT DRIVE SHAFT DUST COVER LH | *8 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP |
| *9 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP | *10 | FRONT DRIVE SHAFT DAMPER CLAMP |
| *11 | SHAFT SNAP RING | *12 | TRIPOD JOINT |
| *13 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY | - | - |
| • | Non-reusable part | - | - |

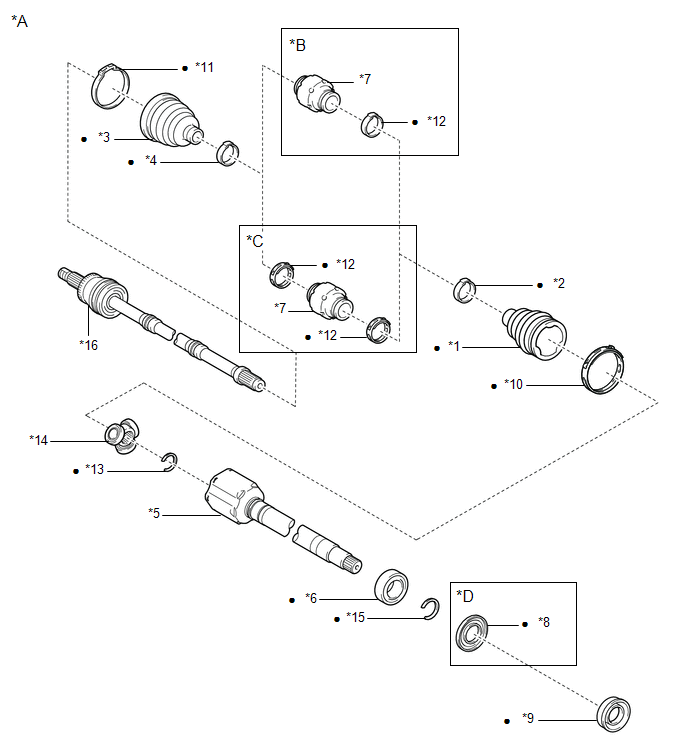

| *A | for RH Side | *B | w/ 1 Clamp |
| *C | w/ 2 Clamps | *D | w/ Cover |
| *1 | FRONT AXLE INBOARD JOINT BOOT | *2 | FRONT AXLE INBOARD JOINT BOOT CLAMP |
| *3 | FRONT AXLE OUTBOARD JOINT BOOT | *4 | FRONT AXLE OUTBOARD JOINT BOOT CLAMP |
| *5 | FRONT DRIVE INBOARD JOINT ASSEMBLY | *6 | FRONT DRIVE SHAFT BEARING |
| *7 | FRONT DRIVE SHAFT DAMPER | *8 | FRONT DRIVE SHAFT DUST COVER |
| *9 | FRONT DRIVE SHAFT DUST COVER RH | *10 | FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP |
| *11 | FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP | *12 | FRONT DRIVE SHAFT DAMPER CLAMP |
| *13 | SHAFT SNAP RING | *14 | TRIPOD JOINT |
| *15 | DRIVE SHAFT HOLE SNAP RING | *16 | FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY |
| • | Non-reusable part | - | - |
