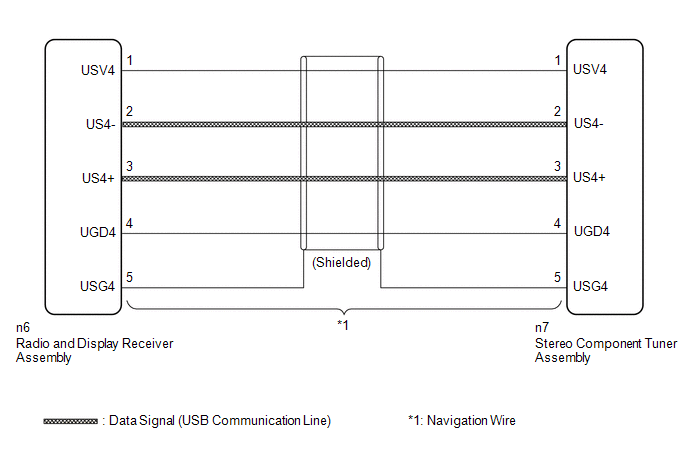

Data Signal Circuit between Radio Receiver and Extension Module [12/2013 - 11/2016]: Wiring Diagram

GTY423031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
