Removal [11/2016 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL
    1. Secure the steering wheel with the seat belt in order to prevent rotation.
      GTY433135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  3. REMOVE FRONT WHEELS
  4. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  5. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Put matchmarks on the steering intermediate shaft assembly and the steering link assembly.
      GTY443624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt and separate the steering intermediate shaft assembly from the steering link assembly.
  6. SEPARATE TIE ROD ASSEMBLY LH
    1. Remove the cotter pin and nut.
      GTY433131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install SST to the tie rod assembly LH.
      GTY433422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the upper ends of the tie rod assembly LH and SST are aligned.

    3. Secure SST using a string.
      NOTE:

      Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.

    4. Using SST, separate the tie rod assembly LH from the steering knuckle.
      • SST: 09960-20010
        1. 09961-02010
      GTY440527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a String *b Molybdenum grease application area
      *c Place wrench here *d Turn
      *e Center Nut - -
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
      • Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
      • Be sure to place the wrench on the part indicated in the illustration.
      • Do not damage the front disc brake dust cover sub-assembly.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
  7. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  8. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  9. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  10. REMOVE FRONT NO. 1 STABILIZER BRACKET LH

    Refer to PROCEDURE - Step 44

  11. REMOVE FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Perform the same procedure as for the LH side.

  12. SEPARATE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
    1. Separate the front stabilizer bar with front stabilizer link assembly from the front frame assembly.
      NOTE:

      Use wire or an equivalent tool to secure the front stabilizer bar with front stabilizer link assembly.

  13. SEPARATE STEERING LINK ASSEMBLY

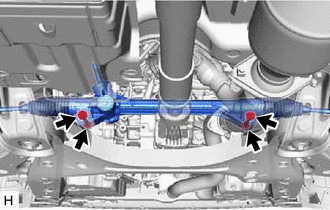

    1. Remove the 2 bolts, 2 nuts and separate the steering link assembly from the front frame assembly.
      GTY729825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
      • Use wire or an equivalent tool to secure the steering link assembly.
  14. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  15. REMOVE STEERING LINK ASSEMBLY
    1. Remove the steering link assembly from the vehicle body.
  16. SECURE STEERING LINK ASSEMBLY
    1. Using SST, secure the steering link assembly in a vise.
      • SST: 09612-00012
      GTY450579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape SST before use.

  17. REMOVE TIE ROD ASSEMBLY LH
    1. Put matchmarks on the tie rod assembly LH and steering gear assembly.
      GTY429095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the tie rod assembly LH and lock nut.
  18. REMOVE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  19. REMOVE STEERING GEAR HEAT INSULATOR

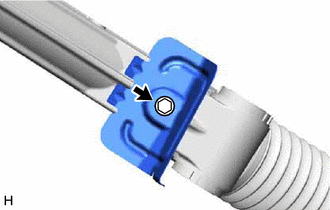

    1. Remove the bolt and steering gear heat insulator from the steering link assembly.
      GTY710609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
