Installation [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STUD BOLT

    HINT:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, install the 2 stud bolts to the exhaust manifold (TWC: Front Catalyst).
      GTY627952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

    2. Using an E8 "TORX" socket wrench, install the 2 stud bolts to the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY627947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

  2. INSTALL EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)
    1. Install a new exhaust manifold to head gasket (for Bank 2) to the cylinder head sub-assembly.
  3. INSTALL EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst)
    1. Temporarily install the exhaust manifold assembly LH (TWC: Front Catalyst) with the 4 nuts.
    2. Temporarily install the No. 2 manifold stay to the exhaust manifold assembly LH (TWC: Front Catalyst) and cylinder block sub-assembly with the bolt and nut.
    3. Using a 12 mm deep socket wrench, tighten the 4 nuts in the order shown in the illustration.

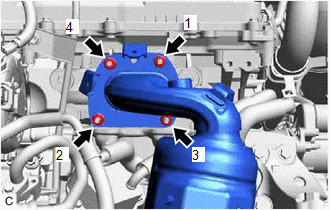

      Fig 1: Exhaust Manifold Assembly LH (TWC: Front Catalyst) Tightening Sequence
      GTY697193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Tighten the bolt and nut in the order shown in the illustration.
      Fig 2: No. 2 Manifold Stay Tightening Sequence
      GTY689851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Nut

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

      Bolt

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  4. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold assembly LH (TWC: Front Catalyst) with the 3 bolts in the order shown in the illustration.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

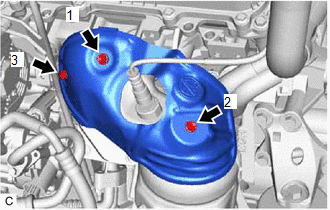

      Fig 3: No. 2 Exhaust Manifold Heat Insulator Tightening Sequence
      GTY730926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR FUEL RATIO SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 3

  6. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    See step  2

  8. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

    See step  3

  9. INSTALL AIR FUEL RATIO SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 1

  10. INSTALL EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
    1. Install a new exhaust manifold to head gasket (for Bank 1) to the cylinder head sub-assembly RH.
  11. INSTALL EXHAUST MANIFOLD (TWC: Front Catalyst)
    1. Temporarily install the exhaust manifold (TWC: Front Catalyst) with the 4 nuts.
    2. Temporarily install the manifold stay to the exhaust manifold (TWC: Front Catalyst) and rear engine mounting bracket with the bolt and nut.
    3. Using a 12 mm deep socket wrench, tighten the 4 nuts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

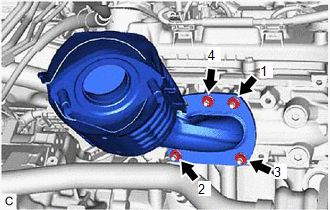

      Fig 4: Exhaust Manifold (TWC: Front Catalyst) Tightening Sequence
      GTY683945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the bolt and nut in the order shown in the illustration.

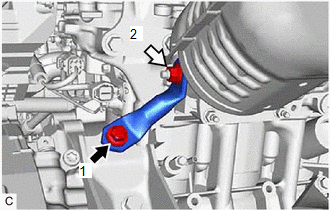

      Fig 5: Exhaust Manifold Stay Tightening Sequence
      GTY697985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

      Nut

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

    5. Engage the 3 wire harness clamps.
    6. Connect the air fuel ratio sensor connector.
  12. INSTALL FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY
    1. Using a vernier caliper, measure the free length of the 2 compression springs.
      GTY146446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Standard Length 43.0 mm (1.69 in.)
      Minimum Free Length 41.5 mm (1.63 in.)

      If the free length is less than minimum, replace the compression spring.

    2. Temporarily install a new gasket to the front No. 3 exhaust pipe sub-assembly (center exhaust pipe assembly (TWC: Rear Catalyst) side).
    3. Using a plastic hammer and wooden block, tap in the gasket until its surface is flush with the front No. 3 exhaust pipe sub-assembly.
      GTY442825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front No. 3 Exhaust Pipe Sub-assembly
      *2 Gasket
      *a Wooden Block
      NOTE:
      • Be careful with the installation direction of the gasket.
      • Do not reuse the gasket.
      • Do not damage the gasket.
      • Do not push in the gasket by using the exhaust pipes when connecting them.
    4. Install 2 new gaskets to the front No. 3 exhaust pipe sub-assembly.
    5. Temporarily install the front No. 3 exhaust pipe sub-assembly with the 4 bolts, 2 nuts and 2 compression springs.
    6. Tighten the 2 bolts and 2 nuts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    7. Tighten the 2 bolts and 2 compression springs.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      HINT:

      After installation, check that the space between the flanges of the center exhaust pipe assembly (TWC: Rear Catalyst) and front No. 3 exhaust pipe sub-assembly is consistent front-to-rear and left-to-right.

      GTY447366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Center Exhaust Pipe Assembly (TWC: Rear Catalyst)
      *2 Front No. 3 Exhaust Pipe Sub-assembly
      *3 Gasket
      *a Space between Flanges: 8.5 mm (0.335 in.)
    8. Connect the heated oxygen sensor (for Bank 1) connector.
    9. Engage the 3 wire harness clamps.
  13. INSPECT FOR EXHAUST GAS LEAK

    See step  9

  14. INSTALL FRONT FLOOR COVER LH
    1. Install the front floor cover LH with the 2 clips (B).
      GTY454210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Install the clip (A), 2 screws and 4 bolts to the front floor cover LH.
  15. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 102

  16. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 103
