Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side of Bank 1)
    1. Disconnect the camshaft position sensor connector.

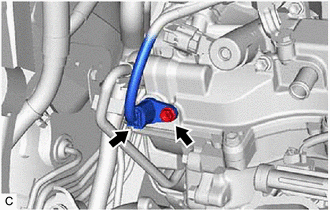

      GTY454789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  3. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the camshaft position sensor connector.

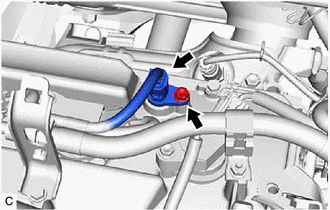

      GTY444079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  4. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side of Bank 2)
    1. Disconnect the camshaft position sensor connector.

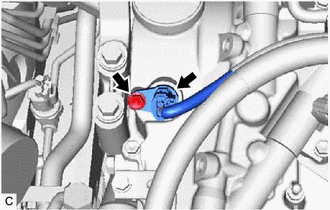

      GTY444078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  5. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the camshaft position sensor connector.

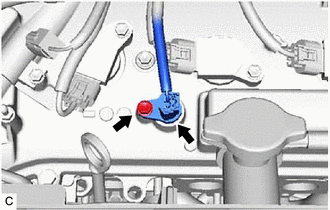

      GTY444081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.
