Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  2. SEPARATE WIRE HARNESS
    1. for Bank 1:
      1. Disengage the wire harness clamp to separate the wire harness.

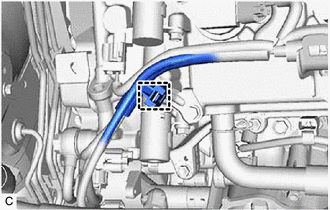

        GTY444088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Bank 2:
      1. Disengage the 2 wire harness clamps to separate the wire harness.

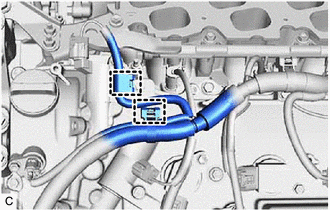

        GTY437788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)
    1. Disconnect the camshaft timing oil control valve assembly connector.

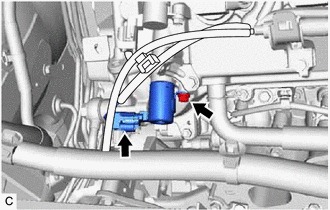

      GTY444089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY425092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)
    1. Disconnect the camshaft timing oil control valve assembly connector.
      GTY444090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY425094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)
    1. Disconnect the camshaft timing oil control valve assembly connector.
      GTY444086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly LH.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly LH).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY425094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)
    1. Remove the bolt and wire harness clamp bracket from the cylinder head cover sub-assembly LH.

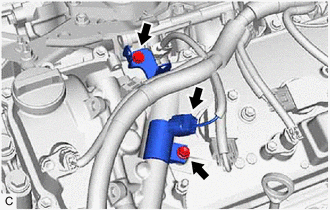

      GTY444087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the camshaft timing oil control valve assembly connector.
    3. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly LH.
      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly (connecting surface with the cylinder head cover sub-assembly LH).
      • If the camshaft timing oil control valve assembly has been struck or dropped, replace it.
    4. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY443947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
