Installation [12/2013 - ]: Procedure

  1. INSTALL SEAT HEATER SWITCH
    1. w/o Climate Control Seat System:
      1. Engage each claw to install the 2 seat heater switches to the upper console panel sub-assembly.

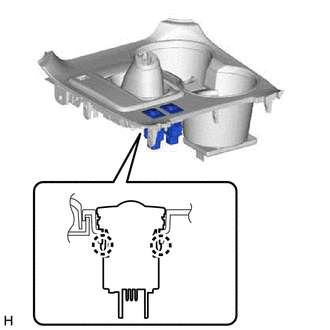

        GTY423573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect each connector to the 2 seat heater switches.
    2. w/ Climate Control Seat System:
      1. Engage the 4 claws to install the seat heater switch to the upper console panel sub-assembly.

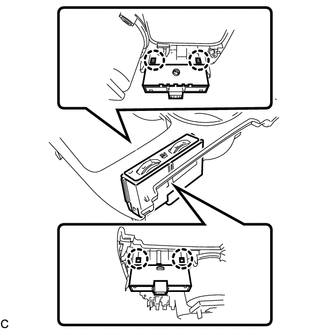

        GTY425958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector to the seat heater switch.
  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 5

  4. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 6

  5. INSTALL FRONT PANEL GARNISH RH

    Refer to PROCEDURE - Step 7

  6. INSTALL FRONT PANEL GARNISH LH

    Refer to PROCEDURE - Step 8

  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9
