Installation [02/2014 - ]: Procedure

1. Install a new grommet to the tire pressure warning valve and transmitter.
   NOTE:

   A new tire pressure warning valve and transmitter comes with a grommet installed. Make sure not to install an extra grommet.

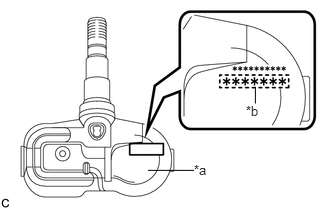

2. Write down the 7-digit transmitter ID number as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Printed Surface
   *b	7-digit Transmitter ID Number

3. Insert the tire pressure warning valve and transmitter with grommet from the inside of the rim.
   NOTE:

   • Make sure that the tire pressure warning valve and transmitter is installed so that the printed surface can be seen. If the tire pressure warning valve and transmitter is installed upside down, it may be damaged or fail to transmit signals when driving at high speeds.
   • Check that there is no deformation or damage to the tire pressure warning valve and transmitter.
   • Check that there is no foreign matter on the grommet and around the rim hole.
4. From the outside of the rim, install the washer onto the tire pressure warning valve and transmitter, and tighten the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Tire Pressure Warning Valve and Transmitter
   *2	Rim
   *3	Grommet
   *4	Washer
   *5	Nut

   Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

   NOTE:

   • No further tightening is required once the nut is tightened to the specified torque.
   • Check that there is no foreign matter on the grommet, washer and nut.
5. Set the tire and disc wheel onto the mounting machine.
   NOTE:

   • If the tire pressure warning valve and transmitter is positioned outside this area, it will interfere with the tire bead and may be damaged.
   • Position the main body of the tire pressure warning valve and transmitter in the area shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rim
   *a	Mount Tool of the Mounting Machine
   *b	60°
   	Rim Rotating Direction
   	Area for Tire Pressure Warning Valve and Transmitter

6. Apply a sufficient coat of soapy water or equivalent to the tire bead and rim.
   NOTE:

   Do not apply soapy water or equivalent directly to the tire pressure warning valve and transmitter.

7. Using a mounting machine, install the tire to the disc wheel.
   NOTE:

   • Make sure that the tire bead and mount tool do not interfere with the tire pressure warning valve and transmitter.
   • Make sure that the tire pressure warning valve and transmitter is not clamped by the bead and rim.
8. Install a new valve core.
9. After the tire is inflated, the valve nut may be loose. Retighten the nut to the specified torque.

   Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

   NOTE:

   No further tightening is required once the nut is tightened to the specified torque.

10. Check the surroundings of the tire pressure warning valve and transmitter for air leaks with soapy water or equivalent.
    1. If air is leaking from the valve core, press the valve core several times to remove foreign matter. Replace the valve core as necessary.
    2. If air is leaking from around the tire pressure warning valve and transmitter, check if the grommet, washer and nut are not deformed, damaged or contaminated with foreign matter. Replace the grommet, washer or nut as necessary.
11. Install the tire valve cap.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to INSPECTION [02/2014 - 11/2016] Refer to INSPECTION [11/2016 - ]

Refer to REGISTRATION [02/2014 - ]

Refer to TEST MODE PROCEDURE [02/2014 - ]

Refer to INITIALIZATION [02/2014 - ]
