Removal [02/2014 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  2. REMOVE TIRE PRESSURE WARNING RESET SWITCH

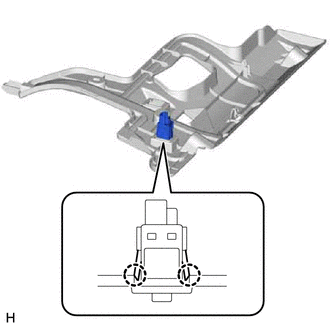

    1. Disengage the 2 claws to remove the tire pressure warning reset switch from the No. 1 instrument panel under cover sub-assembly.
      GTY431334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
