Removal [02/2014 - ]: Procedure

  1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER
    1. Remove the bolt.
      GTY431333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks to remove the tire pressure warning ECU and receiver.

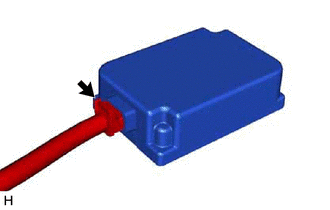

    3. Disconnect the connector from the tire pressure warning ECU and receiver.
      GTY431332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
